Order Fan Vents 100 X star in Valencia at a great price
from
103.46 €
Ex Tax: 85.50 €
- Availability: 99
- Brand: Vents
- Model: 9680
- Weight: 1.00kg
- UPC: 9680
- JAN: 381

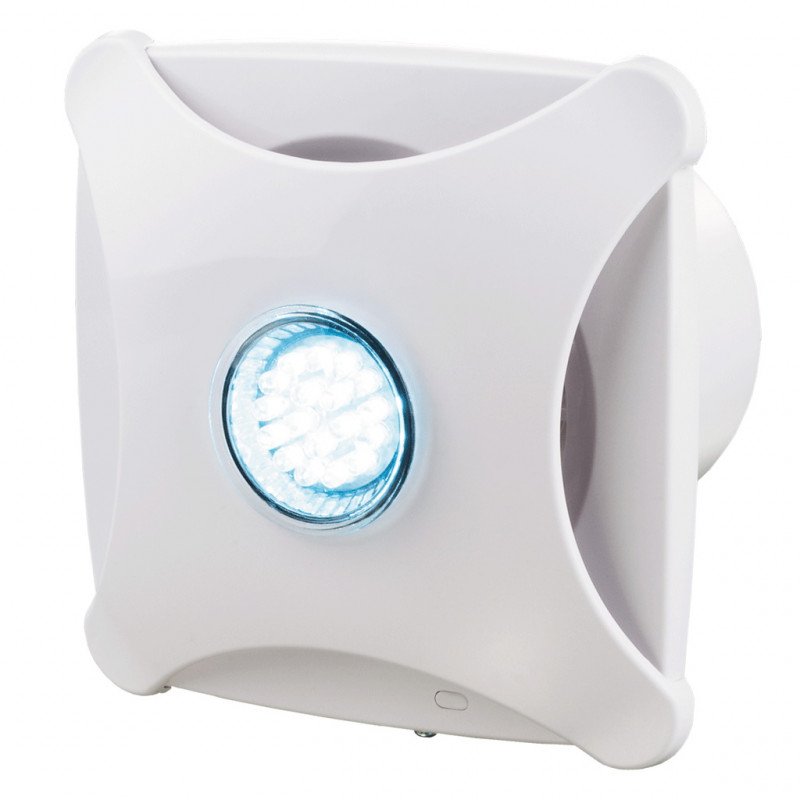

Vents 100 X star is a fan with a 2 W LED lamp built into the housing.
Specifications
| Parameter | Value |
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 14 |
| Capacity, m3/h | 89 |
| < strong>Current, A | 0.085 |
| Rotation speed, min-1 | 2300 |
| Noise level at a distance of 3 m, dB(A) | 33 |
| Weight, kg | 0.62 |
| Protection, class < /td> | IP34 |
| Pipe size, mm | 100 |
Dimensions
| Dimensions | ?D | B | H | L | L1 |
| mm | 100 | 152 | 120 | 131 | 36 |
Connection diagram
Separate activation of the fan and built-in lighting lamp
Simultaneous activation of the fan and the built-in lighting lamp
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers , kitchens and other domestic premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance. < /ul>
- Modern design and aesthetic appearance.
- Vents fan housing and impeller 100 X star are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller allows you to increase the efficiency of the fan and the service life of the engine.
- Decorative replaceable color inserts included - blue, light green , yellow and pink.
- Protection degree IP 34.
- Reliable motor with low energy consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
- The fan is controlled using the room light switch. The switch is not included in the delivery.
- Speed control can be carried out using a thyristor regulator (see Electrical accessories). Fans can be connected several at a time to one control device.
- Using an electronic control unit BU-1-60(see Electrical accessories). The control unit is supplied separately.
- The fan is installed directly into the ventilation shaft opening.
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Design
Motor
Control
< /h3>
Manual:
Automatic:
Installation features
Example installation
Fan passport
