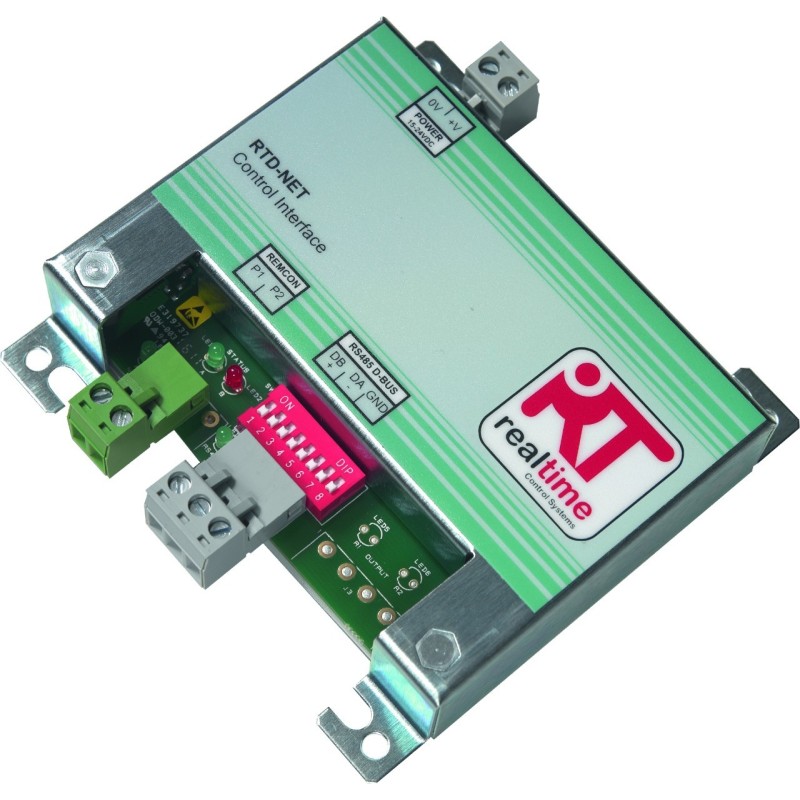

RTD/DCOM controller model RTD-NET Daikin
The RTD / DCOM range adds new control functionalities through the combination of configurable digital / analog inputs / outputs together with the possibility of communication via modbus protocol.
In this specific case, it is a Modbus interface to monitor and control VRV, Sky Air, VAM, VKM and curtain systems through BMS.

Technical Sheet
| RTD-NET | |||||
|---|---|---|---|---|---|
| Ambient temperature | Operation | Min. | °C | 0 | |
| Max. | °C | 50 | |||
| Communication | Protocol | Wiring length | Max. | m | 500 |
| Type | RS485 (modbus) | ||||
| Length of wiring | Max. | m | 500 | ||
| Communication-=-P1 p2 connection | Yes | ||||
| Dimensions | Unit | Width | mm | 100 | |
| Depth | mm | 22 | |||
| Height | mm | 100 | |||
| Weight | Unit | kg | 0.120 | ||
| Power supply | Voltage | V | 15V-24V DC | ||
