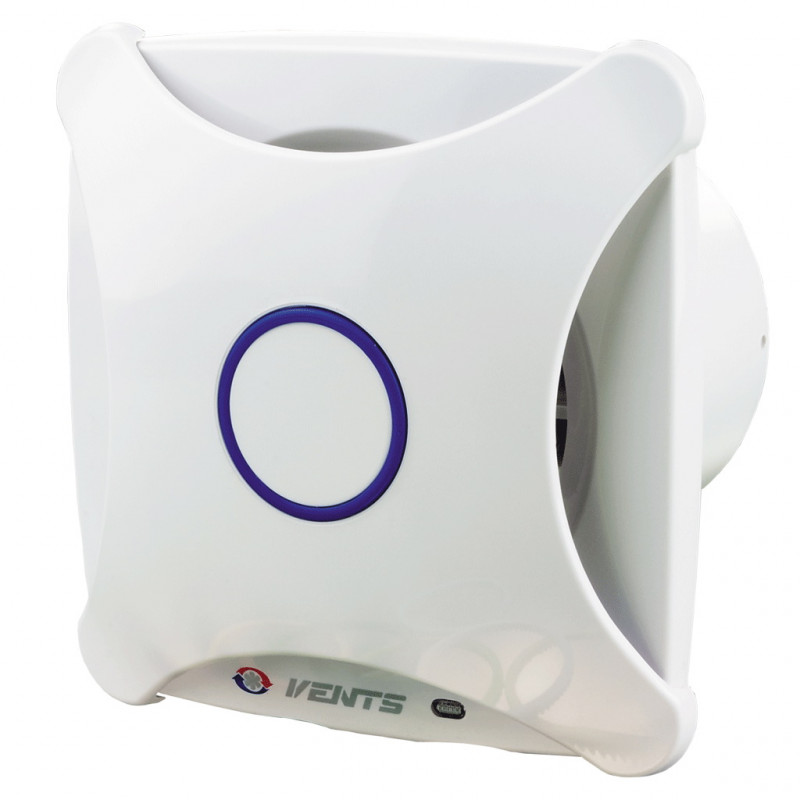

Order Fan Vents 150 HV in Valencia at a great price
from
132.48 €
Ex Tax: 109.49 €
- Availability: 99
- Brand: Vents
- Model: 9563
- Weight: 1.50kg
- UPC: 9563
- JAN: 393
The Vents 150 HV fan is equipped with a cord switch.
Technical characteristics
| Parameter | Value |
| Voltage, V < /strong> | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 24 |
| Productivity, m3/h | 258< /strong> |
| Current, A | 0.13 |
| Rotation speed, min-1 | 2400 |
| Noise level at a distance of 3 m, dB(A) < /br> | 37 |
| Weight, kg | 0.94 |
| IP34 | |
| Pipe size, mm | 150 < /td> |
Dimensions
| Dimensions | ?D | B | H | L | L1 |
| mm | 150 | 205 | 165 | 160 | 42 |
Connection diagram
Scheme for connecting a fan with a built-in switch to the network
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises .
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance.
Design
- Modern design and aesthetic appearance.
- The body and impeller of the Vents 150 XV fan are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller allows you to increase the efficiency of the fan and the service life of the motor.
- Decorative replaceable color inserts included - blue, light green, yellow and pink.
- Protection degree IP 34.
Motor
- Reliable motor with low power consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with protection against overheating.
Control
Manual:
- The fan is controlled using the room light switch. The switch is not included in the delivery.
- Speed control can be carried out using a thyristor regulator (see Electrical accessories). Fans can be connected several at a time to one control device.
Automatic:
- Using an electronic control unit BU-1-60(see Electrical accessories). The control unit is supplied separately.
Installation features
- The fan is installed directly into the opening of the ventilation shaft.
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Example installation
Fan passport
