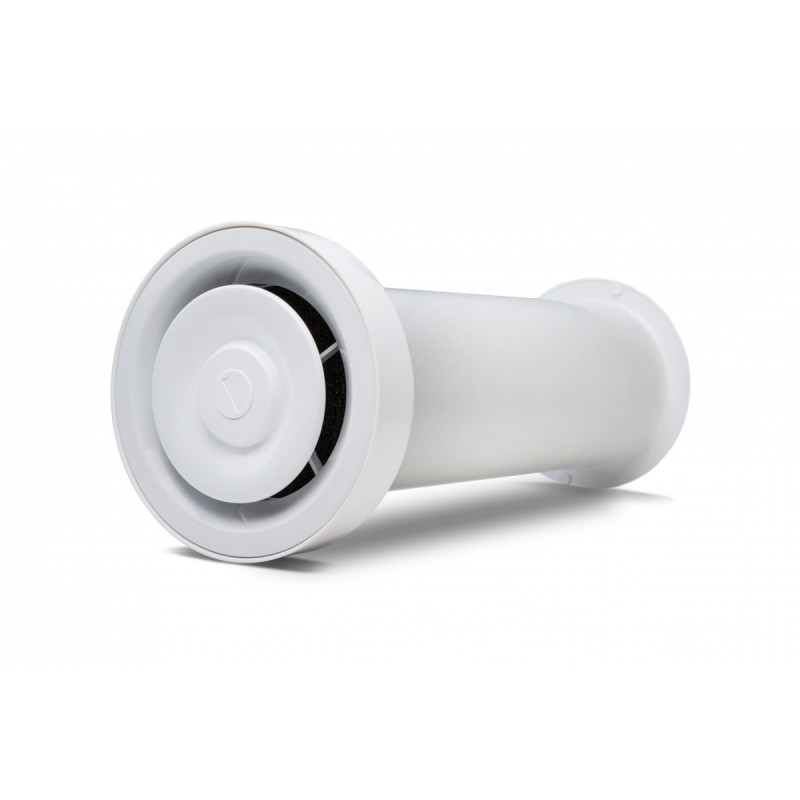

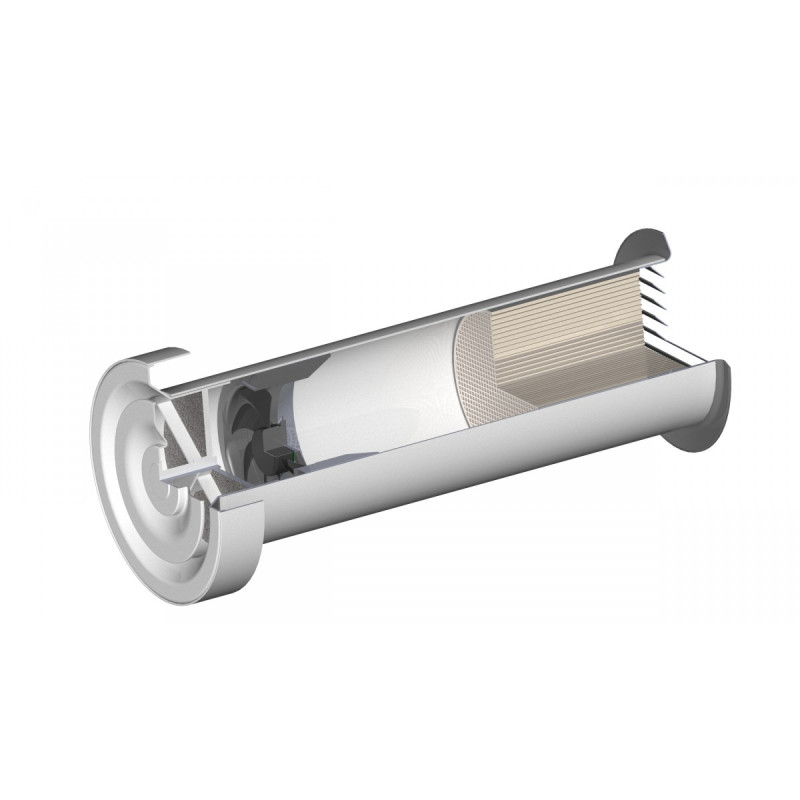

Ventoxx Champion recuperator (under Twist control), a standard ventilation unit with simple construction and medium capacity
Ventoxx Champion recuperator is a standard ventilation unit with a simple design and medium capacity. The optimal combination of price and quality makes this model an absolute sales leader for several years in a row. Equipped with a German-made ceramic heat exchanger, Ventoxx Champion achieves a heat recovery efficiency of up to 86%. These results are confirmed by testing in an independent laboratory in Germany.
The recuperator operates in the temperature range from -20°C to +50°C and functions reliably in all weather conditions. The model is equipped with 11 programs and 3 operating speeds. The maximum volume of air that the device is able to pump is 60 m³/h. The peak power consumption of the device is 4.6 W, and the maximum noise level is only 43 dB.
Completion:
Internal cover - 1 pc.
Air filter (filtration class G-2) - 1 pc.
Reversible fan - 1 pc.
PVC duct 500 mm - 1 pc.
Ceramic heat regenerator - 1 pc.
External grille - 1 pc.
Warranty card
Instructions
Note: can only be controlled with the Twist control unit, which must be purchased separately.
Main features:
- Temperature range: -20 to +50°C
- Heat exchanger type: high-tech heat accumulator (Germany)
- Speed, rpm: 825/2205
- Product type: Recuperator
Technical specifications:
- Diameter, mm: at least 160
- Number of speeds in reverse: 3
- Maintenance: filter does not require replacement. The heat accumulator cartridge and filter should be checked for cleaning every 3 months.
- Ventilation volume, m³/h:
1 speed - 17,
2 speed - 30,
3 speed - 50
- Placement method: horizontal placement in the outer wall
- Noise level, dB(A):
1 speed - 16,
2 speed - 25,
3 speed - 43
- Recovery efficiency, %: 74-86
- Protection class: IP 33
- Number of modes: 11
- Power consumption, W: 1,6-2,6
- Dimensions, mm: pipe length 500 mm, diameter - 150 mm, inner cover - diameter 230 mm, outer grille - diameter 180 mm
- Filter (indoor unit): G2
