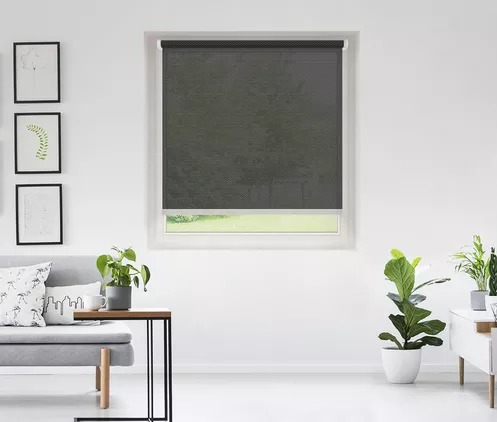

Know the inner screen curtain
Looking for a blind idea to decorate your windows? Do you need stylish blinds that combine privacy, transparency and heat protection? Take the time to discover the roller blind, it meets all these requirements.
Screen fabric is a modern fabric, the mesh of which is delicately arranged, which makes it delicate. It is mainly made of PVC, which gives it many advantages.
Discover the priceless qualities of this custom-made roller blind :

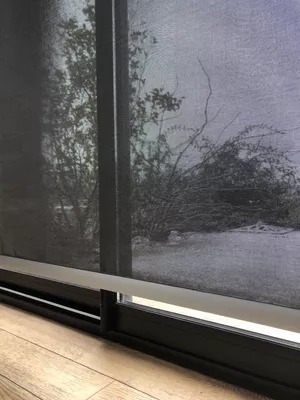

- Thanks to the openwork fabric and the balance of brightness of internal/external visibility, you can see the street. At the same time, internal confidentiality is maintained. The ideal transmission of visible light is 5%.
- PVC material, which is largely present in the fabric, has insulating properties, the screen curtain is an antithermal curtain (details in the next paragraph).
- The mesh is strong. No scuffs and tears at the ends. Resists cat claws.
- Cleaning is easy because PVC withstands water and can be cleaned.
Your window curtain can be controlled in two ways: with a chain or with a remote control, if you choose the comfort of a motorized curtain _ especially recommended for overhead blinds and/or out of reach. Also, for the pleasure of making all descents and ascents effortlessly with one click on the transmitter.
Focus on the heat-resistant aspect of the awning
- Material: 30% Polyester - 70% PVC
- Fabric thickness: about 0.55mm
- Fabric weight: about 410g/m2
- Opening ratio: 5%
What you should remember about the composition of this screen fabric is that it makes your blinds highly effective anti-heat blinds that will perform a protective role in addition to aesthetic modernity. And this was made possible thanks to the significant presence of PVC, a material known for its insulating properties. It is able to reflect and absorb most of the solar heat (up to 90%). That 's why we recommend this awning for winter gardens and other sun -drenched rooms .
And the color in all of this? The choice of fabric color plays an active role in heat transfer. Thus, the darker the screen fabric, the more effectively it reduces this phenomenon. If the criterion is the aspect of overheating protection, it is strongly recommended to take it into account.
Beautiful decoration of the awning-screen made in Spain!
Choosing custom-made domis.pro roller blinds, you get an interior curtain with high-quality details and an elegant finish.
domis.pro roller blinds are made to order here in Spain, and we have most of the components produced by European manufacturers. These components are available for after-sales service. At first glance, it can be seen that these blinds are of very good quality, durable and well finished.
Heavy-duty aluminum tube : We chose it to withstand the heaviest weights without bending. Our craftsmen work with two diameters. The choice depends on your size, and every precaution is taken to ensure the quality of the roller blinds over time. When several rolled pipes fit your size, we systematically offer you a choice that allows you to combine several blinds in one room or on one wall.
Available in several colors (a thin section of the mechanism is visible at each end of the winding, between the cover and the mesh fabric), the corresponding end caps of the ballast rods.
Reinforced metal mounting brackets: Regardless of the weight of your roller curtain, it is perfectly preserved! There is no risk of stalling! The mounting eye is shown here with a thread in the integral type cover (see 2 existing models below).
Built-in side covers - LIMITED EDITION : The built-in covers are put on metal fixing protrusions of the mechanism. The whole room is hidden there. For a very aesthetic result! Available in several colors.
Simple side covers: they are attached to metal fixing tabs at the ends of the mechanism. The wall return, which is used to attach to the support, remains bare, unlike the built-in model in the limited edition. Available in several colors.
Full aluminum cargo rod finish : cargo rod is visible, modern finish is guaranteed! Link with a metal chain to optimize the wow effect! Dimensions B30 x W15 mm.
Metal chain: Decidedly modern, it gives an undeniable elegance to all the blinds with which it is associated. This is the finish of choice! The diameter is 5mm. Available in PVC. All chains can be cut with scissors.
Child safety: This is a transparent support that is screwed to the wall to always be calm (against suffocation). Its translucent color makes it almost invisible. The mounting of this support to the wall complies with the European standard EN 13120 . Comes with all chain blinds.
Rather blind with or without a chain?
Custom-made AvosDim roller blinds are controlled by a chain, a simple wave of the hand or using a remote control.
- Chain: easy to use, this is the most common maneuver. Its length conforms to the European standard EN 13120 to protect young children from accidental suffocation. Thus, for a louver height > 2500 mm, the length of the louver chain is 1000 mm; beyond it 1500 mm.
- Automatic lifting: the course of the awning is regulated by a spring hidden in the tube. Your hand accompanies the lowering of the roller blind. Where the fabric is sagging, the curtain rises a little, and then it is fixed. Due to the absence of a chain, the automatic roller shutter ensures the safety of children and has a more modern and aesthetic appearance.
The width of the automatic awning should be from 580 to 1800 mm, and the height should not exceed 2000 mm. The color of the mechanism is available exclusively in white. - Motorization: there is no need to mess with the power supply, the motor is WiFi, wireless. We dedicate a whole paragraph below to this, open it quickly!
For your comfort, motorize the roller shutters!
Is the width of your blinds at least 535 mm? Choose a motorized maneuver and easily control your awning from the remote control! We equip the winding tube with our AvosDim 005329 or 005349 cordless motors depending on the weight of the blinds, which do not require electrical connection and therefore do not require work! A simple micro USB cable (not included) is enough to charge the lithium battery built into the motor. Its autonomy? From 6 to 12 months, depending on use.
Safer for children and more aesthetic, motorized blinds do not have chains (do not pay attention to their display on a blind viewer).
Engine 005329:
- The motor is used with winding tubes ø32
- Speed: 21 rpm
- Torque: 0.5 Nm
- Power: 6W
- Power consumption: 0.70 A
Motor 005349:
- The motor is used with winding tubes ø40
- Speed: 28 rpm
- Torque: 1.1 Nm
- Power: 10 watts
- Power consumption: 1.20 A
General characteristics
- Voltage: 5V
- Frequency: 433MHz
- IP20
- CE standard
- Electronic stop adjustment
- Adjustable running speed
- Saved favorite position
To control the blinds motors, don't forget to add at least one remote control to control them. You have a choice between the 1-channel bidirectional remote control 005318 or the 15-channel version 005351. The 1-channel remote control can control either one curtain or 1 group of multiple blinds, and the 15-channel remote can control 15 blinds individually or 15 groups of blinds (one group controls up to 20 blinds at the same time!).
The motorized awning can be controlled from a mobile application.
Multiple lines on the connected box 005313 (not included) for mandatory reading, if you are tempted by a motorized roller shutter! Thanks to the feedback available to the engine, you can manage the store from your phone from anywhere in the world through a free app available on Apple and Android. The very practical box is compatible with speakers connected to Alexa and Google Home! Well-designed, it is scalable and continues to improve.
With the help of the application, you can control domis.pro blinds and roller shutters compatible with the box in real time and, in particular, adjust its partial opening using your favorite position.
How to remove the dimensions before ordering a roller blind
WHAT SIZES TO TELL US
The dimensions reported to us are exclusively the dimensions A and B shown in all our diagrams below:
A - THE TOTAL WIDTH OF THE BLINDS: This measurement includes the width of the fabric + the side mechanism of the blinds. This mechanism is 37mm longer than the canvas in total. Example: to cover glazing with a width of 500 mm, we report a total width of 537 mm (500 mm of canvas + 37 mm of mechanism).
B - THE TOTAL HEIGHT OF THE BLINDS: Imagine that your curtain is fully deployed, and specify the distance between the upper end (roller) and the lower end (loader).
C - FABRIC WIDTH: the width of the fabric is 37 mm less than the total width of the blinds (A). To achieve optimal results, we recommend extending the fabric by at least 10 mm on each side of the glazing, as far as possible (watch the handles!).
D - DIMENSIONS OF THE COVER MOUNTING: If the width of the roller blind is less than or equal to 2000 mm, the size is 63 mm (individual covers) or 65 mm (built-in covers).
If the width of the roller blind is more than 2000 mm, the size is either 70 mm (single blinds) or 69 mm (built-in blinds).
E - DIMENSIONS OF THE COVER MOUNTING: If the width of the roller blind is less than or equal to 2000 mm, the size is 51 mm (individual covers) or 52 mm (built-in covers).
If the width of the roller blind is more than 2000 mm, the size is either 55 mm (single blinds) or 77 mm (built-in blinds).
CHAIN LENGTH: For your safety, we comply with the European standard EN 13120, designed to protect young children from accidental suffocation. So for a louver height > 2500 mm, the chain of your louver has a length of 1000 mm; in addition, its length is 1500 mm.All our chains can be easily cut if necessary. A wall bracket is provided for tensioning the chain of the roller curtain . This mount is equipped with a red transport protective device (it should be removed and disposed of upon receipt).
OR TAKE THESE SIZES ACCORDING TO THE POSITION
Sizes are taken differently from one pose to another. Look at these patterns and determine your:
Wall mounting
Embedded installation
Ceiling installation
installation on a window
