Main characteristics rectangular electric heater Aerostar SEH 50-25/7.5

Electric heaters Aerostar SEH series are used to heat air in supply and exhaust air conditioning and ventilation systems in order to create the most favorable climatic conditions. This model shows an increased level of performance, combining the most useful functional features. Fastening can only be carried out together with air ducts of rectangular cross-section. You are guaranteed to provide yourself with well-coordinated and high-quality work for a long time.

To obtain detailed information about the presented model, you should contact Internet managers Domis store. Only our professional team is always ready to assist in choosing high-quality ventilation equipment.

Overall dimensions

< td>SEH 60-30/36< td>SEH 90-50/64.5
DesignationDimensions, mmWeight,

kg
ABVGDZFE
SEH 40-20/6400200420220440335480240 6
SEH 40-20/124456
SEH 50-25/7.5500250520270540335580290 8
SEH 50-25/1544512
SEH 50-25/22.555515
SEH 50-30/7.5 3003203353409
SEH 50-30/1544513
SEH 50-30/22.555516
SEH 60-30/18600620 64044568014
SEH 60-30/2755518
66523
SEH 60-35/1835037044539026
SEH 60-35/2755526
SEH 60-35/3666526
SEH 60-35/4577526
SEH 70-40/22.270040072042074044578044018
SEH 70-40/33.344528
SEH 70-40/44.4 66526
SEH 70-40/66.688538
SEH 80-50/25.880050083053086044588056025
SEH 80-50/38.755538
SEH 80-50/51.666541
SEH 80-50/77.488556
SEH 90-50/38.7 90093096055598032
77536
SEH 90-50/45 55540
SEH 90-50/7577545
SEH 90-50/9088550
SEH 100 -50/45100010301060555108038
SEH 100-50/6066542
SEH 100-50/9088558

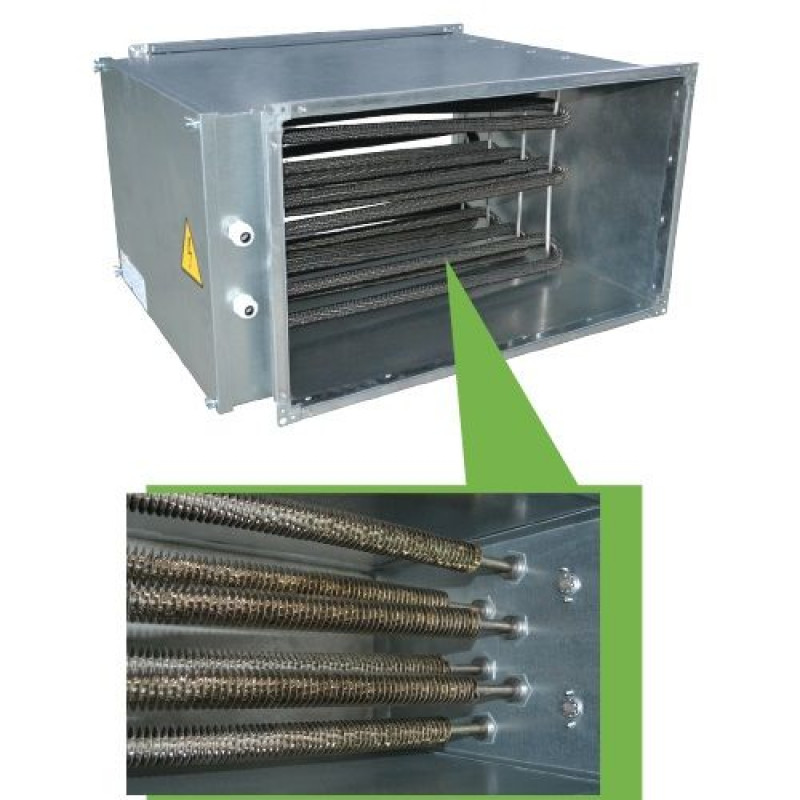

Construction

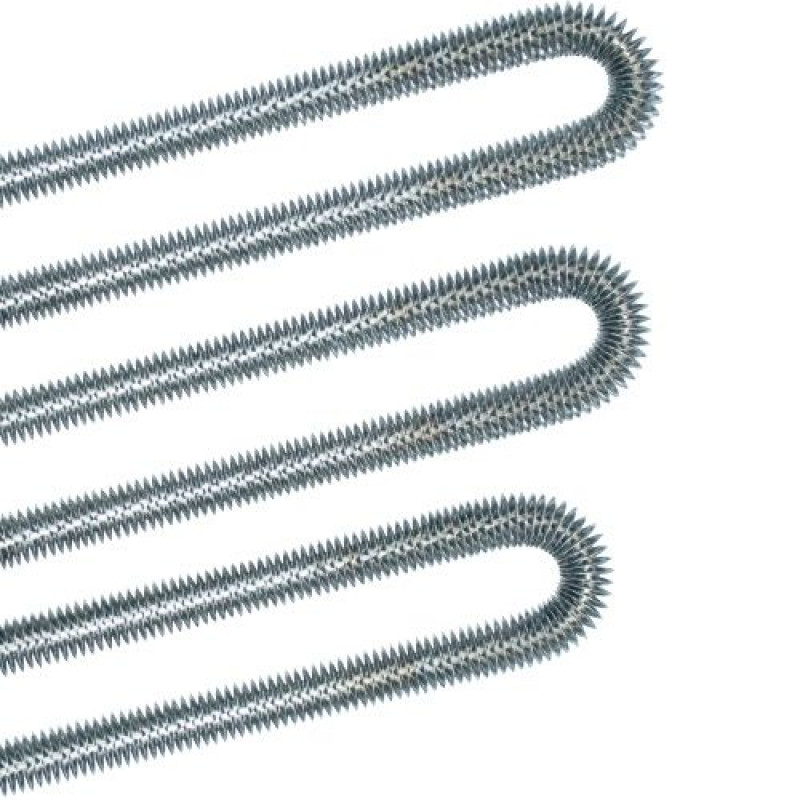

The body and frame are made of galvanized steel, which is not subject to corrosion and oxidation, significantly extending the nominal service life. The heating rods are made of stainless steel and have special fins, which helps to heat up much faster and transfer heat better.

This model is completely protected from overheating , which is facilitated by the installation of special thermal contacts, which, if something happens, automatically switch off. Bimetallic element mounted inside a metal case.

Recommended operating temperature -30C to +40C. Nominal protection class is IP20.

Installation

Basic installation rules:

  • It is necessary to provide control and service access to the heater. An air filter should be installed in front of the heater to protect it from contamination
  • In order to achieve maximum power, the heater must be connected as a counterflow one
  • If the heater is located in front of the fan, its power should be adjusted so as not to exceed the maximum permissible air temperature
  • If the heater is located behind the fan, we recommend designing an element between the fan and the heater that stabilizes the air flow (for example, an air duct 1 - 1.5 m long).

In order to buy an electric heater Aerostar SEH 50-25/7.5, you should contact the company’s managers Domis, who are always ready to provide professional advice on choosing the best ventilation equipment at an affordable price. Delivery is carried out to any point in Kyiv and Ukraine, using a carrier or courier service convenient for you.

Call and get a discount!

Characteristic
Weight, kg 8
The phase 3 phases - 380 V
Type of connection rectangular channels
Power, kW 7.5
Protection, class IP20
Voltage, V 380
Pipe size, mm 500x250
