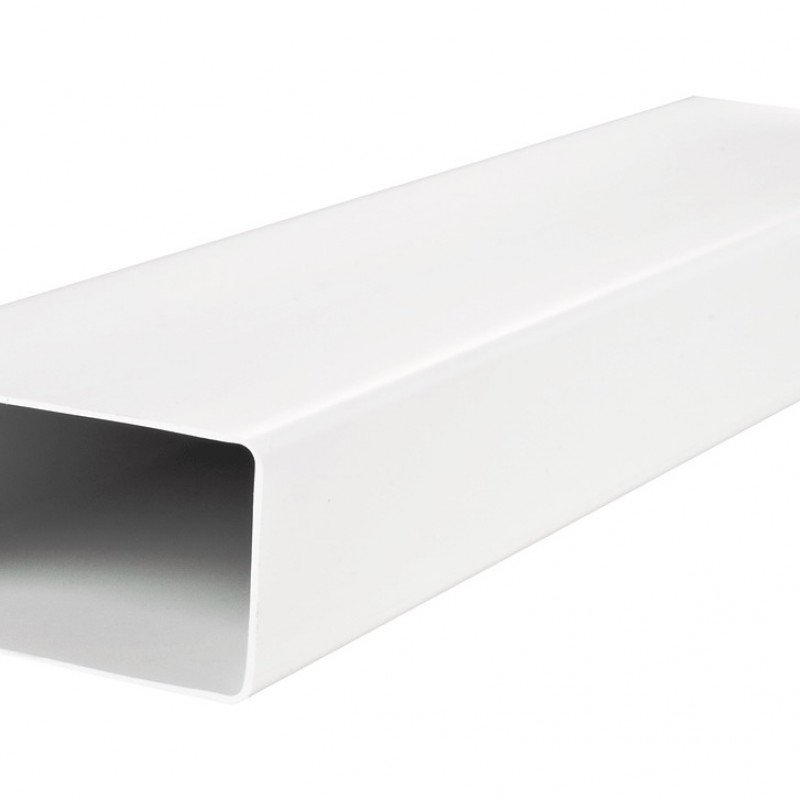

A flat plastic channel 8015, 1.5 meters long and with a cross-section of 60x204 mm, is used for exhaust or supply ventilation. The air duct is one of the elements of Plastivent plastic channels.
Application
- For supply or exhaust ventilation of various rooms.
- For forming a system of flat ventilation air ducts.
Design
- The channel is made of white PVC.
- Cross-section: 60x204 mm.
- Channel length 1.5 meters.
- Connected to each other using connectors of appropriate sections.
Dimensions
| Dimensions | < td style='text-align: center, background-color: #b7c0c2,'>aa1 | b | b1 | L | |
| mm | 60 | 57 | 204 | 200 | 1500 |
Table for selection of a rectangular duct
| Air duct cross-section, mm | Air flow rate at air speed, m?/h | ||||
| 2 m/s | 3 m/s | 4 m/s | 5 m/s | 6 m/s | |
| 55x110 | 43 | 65 | 87 | 109 | 130 |
| 60x120 | 52 | 78 | 104 | 130 | 155 |
| 60x204 | 88 | 132 | 176 | 220 | 265 |
| 90x220 | < td style='text-align: center,'>142214 | 285 | 356 | 428 |
Example 1. It is necessary to select a root air duct for the exhaust ventilation of the sauna with a design capacity of 340 m³/h. The speed in the root section should be within 5-6 m/sec. According to the table, an air duct with a cross section of 90x220 mm fits these parameters.
Example 2. It is necessary to select an air duct for the supply ventilation system of a private house, which extends from the root air duct into the living room. The estimated capacity in this branch is 120 m³/h. The speed in the side air duct should be within 3-4 m/sec. According to the table, an air duct with a cross section of 60x204 mm is suitable.
Example 3. A kitchen hood requires a flat duct. The estimated exhaust capacity is 270 m³/h. The speed is allowed within 5-6 m/sec. For this task, according to the table, an air duct with a cross section of 60x204 mm is suitable.
