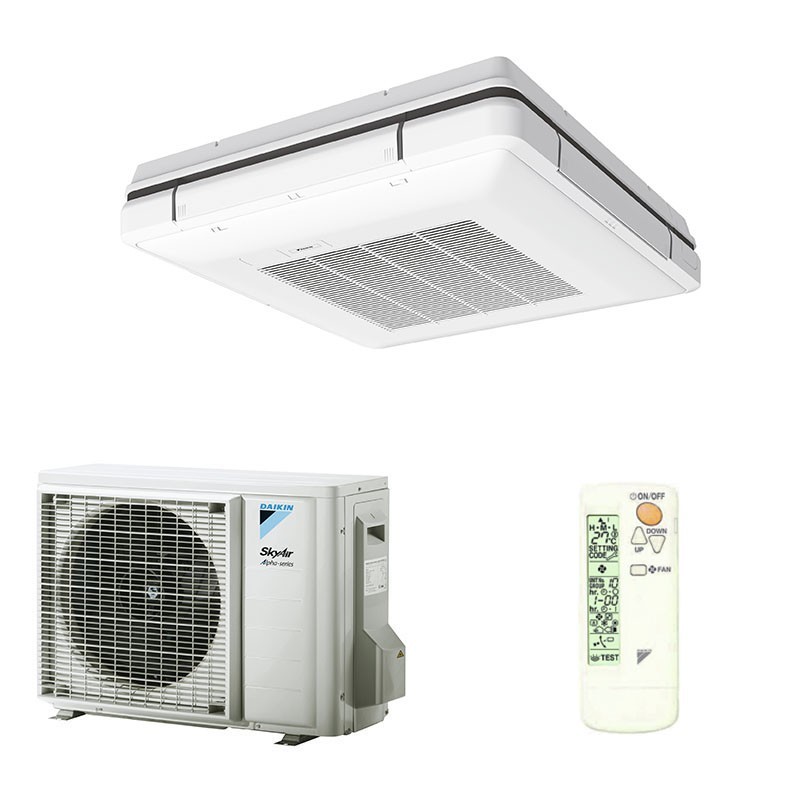

Daikin ZUAG100A inverter cassette air conditioner, for rooms from 60 to 105 m2
Daikin is once again presenting the Vista cassette from the top Daikin range in three different sizes for rooms from 60 to 105 square meters. In this particular case, the ZUAG100A, thanks to its small dimensions (198x950x950 mm), makes it ideal for installation almost anywhere due to its reduced height of only 198 mm. Thanks to Japanese inverter technology, consumption will be reduced compared to previous generation models of the same brand. In addition, the use of environmentally friendly refrigerant R32 makes it ideal for today's times.Full technical data sheet
The order includes:- INDOOR UNIT: FUA100A
- OUTDOOR UNIT: RZAG100NV1
- REMOTE: BRC7C58

| Air conditioning | |
| Sound level (outdoor unit) dB(A) | 47/50 |
| Refrigerant | R-32 |
| Refrigerant liquid line diameter, mm (inches) | 9.52 (3/8 inch) |
| Energy efficiency class in cooling mode | A++ |
| Outdoor unit reference | RZAG100NV1 |
| Refrigerant gas line diameter, mm (inches) | 15,875 (5/8 inch) |
| Energy efficiency class in heating mode | A+ |
| Refrigerant pipe length without additional charge, m | 40 |
| Dimensions (Height x Width x Depth) | 198/950/950 мм |
| Outdoor unit dimensions (height × width × depth) | 870/1100/460 мм |
| SEER | 6.42 |
| SCOP | 4,50 |
| Indoor unit reference | FUA100A |
| Factory refrigerant charge, kg | 3,20 |
| Electrical wiring | Однофазный |
| Approximate weight | 26 кг. инт/85 кг шт. доб. |
| Cooling capacity, W | 8000 |
| Maximum pipe length | 85 (100 экв.) |
| Recommended area, m² | From 75 to 85 m2 |
| Maximum level difference | 30 |
| Noise level | Низкий |
| Sound level (indoor unit) dB(A) | 49/39 |
