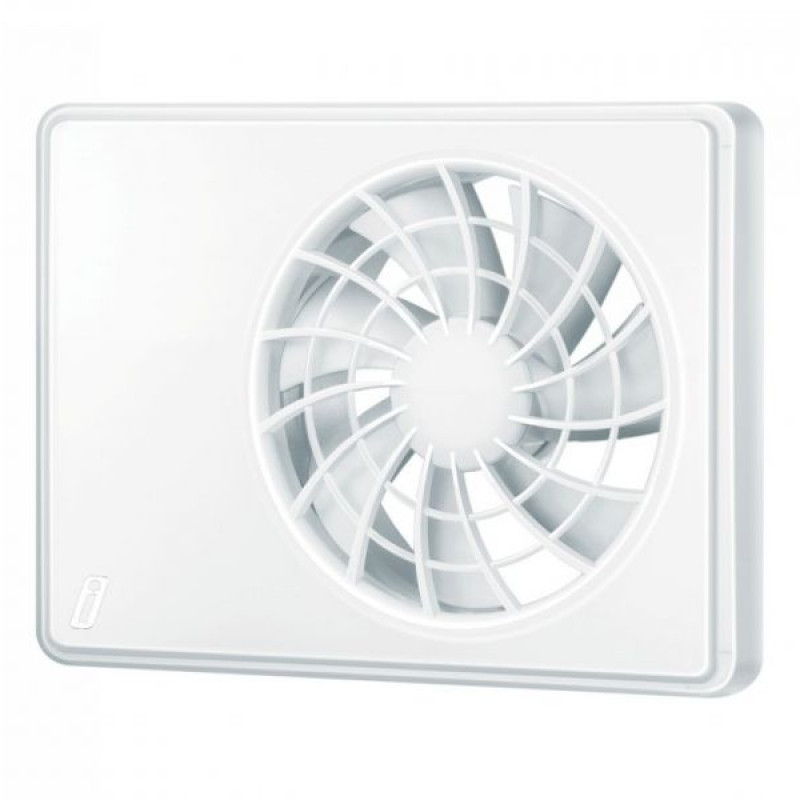

Vents iFan 100 Move - this is a model with intelligenthumidity control and additional motion sensor control.
Purpose
- The Vents iFan 100 Move overhead fan is used for use in exhaust ventilation systems in bathrooms, showers, kitchens and other domestic premises.
- The thickness of the fan is only 30 mm
- Intelligent built-in fan control functions allow you to configure the fan mode depending on the consumer's needs.
Technical characteristics of the fan
| Parameter | Value | |
| Speed | silent | max< /strong> |
| Maximum air flow, m3/h | 72 | 106 |
| Noise level at a distance 3 m, dBA | 22 | 31 |
| Regulation range, m3/h | 33...72 | 72...106 |
| Voltage, V | 100-240 | 100-240 |
| Frequency, Hz | 50-60 | 50-60 |
| Revolutions, min-1 | 1950 | 2200 |
| Power consumption, W | 3.1 | 3.8< /td> |
| Weight, kg | 0.35 | |
| Protection class | IP 44 |
Fan dimensions
| Dimensions | D | B | H | L | L1 |
| mm | 100/125 | 152 | 206 | 57 | 29 |
Design features
Control panel for fan operating modes
| |
 | Stylish design
|
 | Engine on ball bearings
|
 | Variability of installation
|
 | Replaceable gearboxes
|
 | Low noise level
|
- The thickness of the fan (front panel) is only 29 mm.
- Built-in switch to turn off the fan during service
Vents iFan fan remote control
Fan motor
- Ball bearings are used that do not require maintenance
- Energy consumption of the fan is only 3.8 W
- To absorb vibration, rubber vibration-damping inserts are used on which the motor is installed, which ensures silent operation of the fan
- Built-in motor overheating protection
Operating modes
The control panel is used to control the operation of the Vents iFan fan
HUMIDITY MODE / Humidity control settings
The humidity sensor allows you to program operation in three modes
- Sleep - the fan is in standby mode until a signal from the humidity sensor or external switch appears
- Silent- optimal mode for removing moisture, the fan operates in silent mode with a capacity of up to 83 m3/h
- Max- maximum performance mode for removing excess moisture, fan performance up to 133 m3/h
TIMER / Control of fan on/off delay time
Three timers are available
- Humidity removal timer - set the fan operating time after reaching the required humidity level - 30, 45 or 60 minutes
- Switch off delay timer - when the fan is turned on from an external switch, the fan runs for the set time (5, 15 or 30 minutes), after which it returns to the previous mode
- On delay timer - if you often and If you briefly visit a room where a fan is installed (for example, a bathroom), then to prevent unnecessary fan activation, you can set the fan to turn on not immediately, but with a delay of 0.2 or 5 minutes
< img src='/image/vent/speed.gif' alt='Selecting speed mode'>
SPEED / Setting the fan speed
Uses smooth adjustment of fan performance in range of 10 speeds
- Silentmode - from 33 to 72 m3/h
- Maxmode - from 72 to 106 m3/h
MOVE/Motion sensor
< strong>Automatic switching on of the Vents iFan fan in Silent mode when a signal is received from a motion sensor. Sensor coverage area 1-4 m, viewing angle 100°
24 HOURS / Constant ventilation
The fan operates at minimum performance - 33 m3/h. When the humidity level changes, the fan switches to Max(default) or Silent mode. When receiving a signal from an external switch, it switches to Silent
Automatic interval ventilation
The fan turns on every 15 hours. It works for 2 hours to ventilate the room with a capacity of 72 m3/hour, after which it turns off.
Examples of installation of the Vents iFan Move fan
Video review of the Vents iFan fan
Fan passport
(pdf 9.56 Mb)
Warranty
The product warranty period is 60 months (5 years )from the date of sale of the product, subject to the consumer following the rules of transportation, storage, installation and operation.
