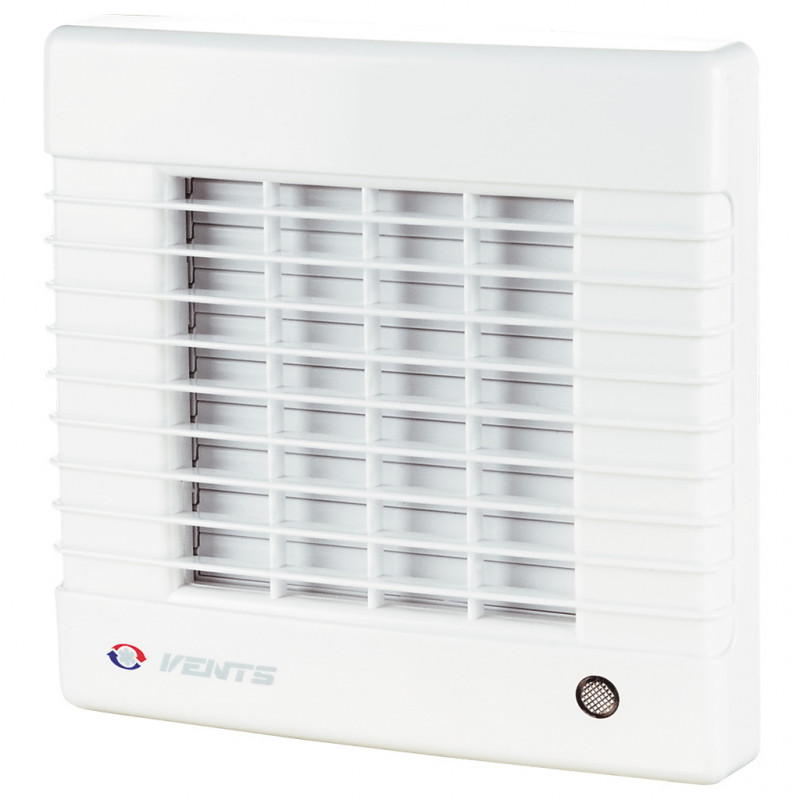

Order Fan Vents 150 MATN in Valencia at a great price
from
147.16 €
Ex Tax: 121.62 €
- Availability: 99
- Brand: Vents
- Model: 9554
- Weight: 1.50kg
- UPC: 9554
- JAN: 334
This fan is equipped with a timer and humidity sensor.
If the humidity in the room exceeds the value set on the sensor of 60-90%, then the Vents 150 fan The MATH will automatically turn on and continue operating until the humidity returns to normal, then the fan works out the time set on the timer and turns off
Technical characteristics
| Parameter | Value< /td> |
| Voltage , B | 220 |
| Maximum power consumption, W | 26 |
| < strong>Productivity, m3/h | 295< /td> |
| Current, A | 0.13 |
| Rotation speed, min-1 | 2400 |
| Noise level at a distance of 3 m, dB(A) | 39 |
| Weight, kg | 1 ,02 |
| Protection, class | IP24 |
| Pipe size, mm | 150 |
Drawing and dimensions
| Dimensions | ?D | B | B1 | B2 | H | L | L1 |
|---|---|---|---|---|---|---|---|
| mm | 150 | 212 | 196 | 150 | 195 | 114 | 33 |
Connection diagram
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance of the ventilation system. < li>For installation with 100, 125 and 150 mm air ducts.
Design
- Modern design and aesthetic appearance.
- House and the impeller are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller allows you to increase the efficiency of the fan and the service life of the motor.
- The fan is equipped with a device that ensures smooth opening and closing of automatic louvers that prevent backdraft.
- Protection degree IP 24.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
Installation features
- The fan is installed directly into the opening of the ventilation shaft.
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Example installation
