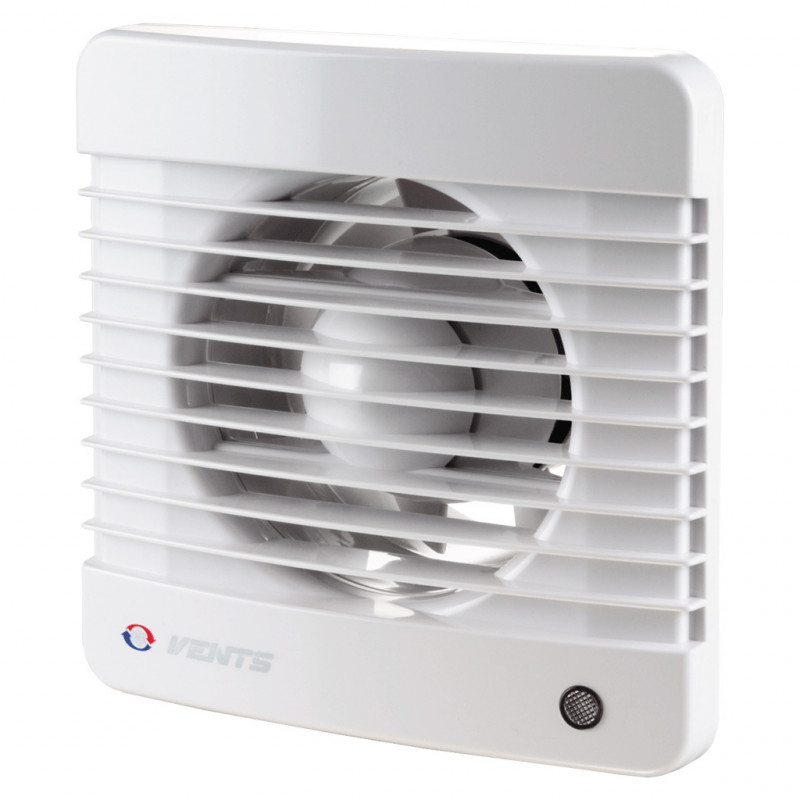

Order Fan Vents 150 M in Valencia at a great price
from
89.84 €
Ex Tax: 74.25 €
- Availability: 99
- Brand: Vents
- Model: 9584
- Weight: 1.50kg
- UPC: 9584
- JAN: 309
Fan specifications
| Option | Size | Unit of measurement | |||
| Tension | 220-240 | B | |||
| Current frequency | 50 | Hz | |||
| Maximum power | 24 | W | |||
| Performance | 295 | m3/h | |||
| Tok | 0.13 | A | |||
| Rotation speed | 2400 | min-1 | |||
| Noise level at a distance of 3 m | 39 | dB(A) | |||
| Weight | 0.7 | kg | |||
| Protection | IP 34 | class | |||
| 150 | mm |
| Dimensions | ?D | B | H | L | L1 |
| mm | 150 | 206 | 182 | 106 | 25.5 |
Diagram for connecting the fan to the network
Application
- Continuous or periodic exhaust ventilation of bathrooms , showers, kitchens and other domestic premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance of the ventilation system.< /li>
- For installation with 150 mm air ducts.
Design
- Modern design and aesthetic appearance.
- House and the impeller are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- Protective insect net.
- Protection degree IP 34.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
Control
Manual:
- The fan is controlled using a room light switch. The switch is not included in the delivery.
- Speed adjustment can be carried out using a thyristor regulator (see Electrical accessories). Fans can be connected several at a time to one control device.
Automatic:
- Using an electronic control unit BU-1-60(see Electrical accessories). The control unit is supplied separately.
Installation features
- The fan is installed directly in the opening of the ventilation shaft or used for ceiling mounting with connection to the air duct. < li>When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall using screws.
Installation example
M series fan passport
Video tutorial on fan installation
