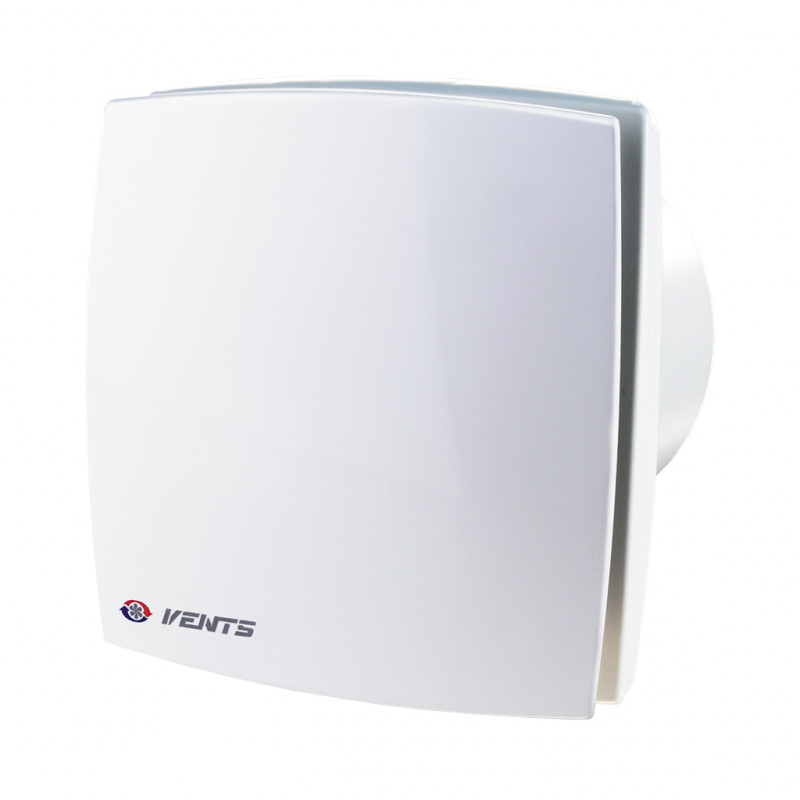

Order Fan Vents 150 LD in Valencia at a great price
from
115.90 €
Ex Tax: 95.79 €
- Availability: 99
- Brand: Vents
- Model: 9570
- Weight: 1.50kg
- UPC: 9570
- JAN: 374
Specifications
| Parameter | Value |
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 32.1 |
| Productivity, m3/h | 255 |
| Current, A | 0.23 |
| 2340 | |
| Noise level at a distance of 3 m, dB(A) | 44 |
| Weight, kg | 0.74 |
| Protection, class | IP34 |
| Pipe size, mm < /strong> | 150 |
Overall dimensions
| Dimensions | ?D | B< /strong> | H | L | L1 |
| mm | 150 | 206 | 165 | 154 | 36 |
Connection diagram
< /br>
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.< /li>
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium air flows over short distances with low resistance of the ventilation system.
Design
- Modern design and aesthetic appearance.
- The body, impeller and front panel of the Vents 150 LD fan are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- Various decorative overlays are available for the front panel made of natural aluminum.
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- Protection degree IP 34. < /ul>
- Reliable motor with low power consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection
- The fan is controlled using the room light switch. The switch is not included in the delivery.
- Speed control can be carried out using a thyristor regulator (see Electrical accessories). Fans can be connected several at a time to one control device.
- When using the electronic control unit BU-1-60 (see Electrical accessories). The control unit is supplied separately.
- The fan is installed directly into the opening of the ventilation shaft.
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Motor
Control
Manual:
Automatic:
Installation features
Example installation
Fan passport
