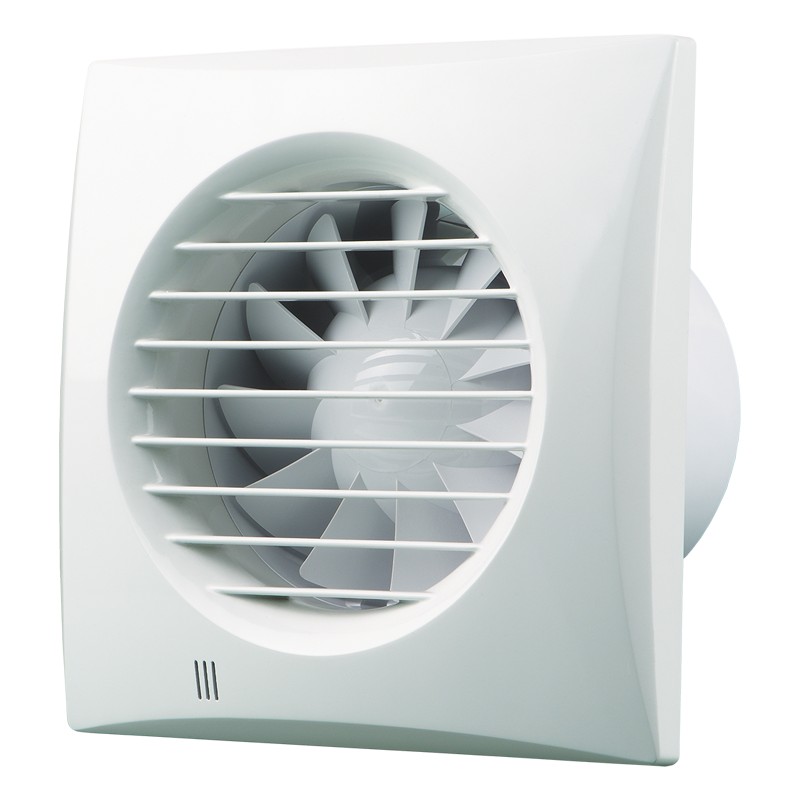

Vents 125 Quiet-Mild fan with low noise level is used for ventilation of a toilet, bathroom or kitchen. Installed directly into the exhaust shaft or using a short air duct. Maximum fan capacity up to 185 m3/h, nozzle diameter 125 mm.
Technical characteristics
| Option | Size |
| Voltage, V | 230 |
| Current frequency, Hz | 50 |
| Power consumption, W | 17 |
| Maximum air flow, m3/h | 185 |
| Current, A< /strong> | 0.11 |
| Noise level at a distance 3 m, dB(A) | 32 |
| Weight, kg< /strong> | 0.78 |
| Protection | IP 45 |
| Pipe size, mm | 125 |
Dimensions
| D | B | H | L | L1 |
| 124 | 182 | 158 | 91 | 27 |
Features
Quiet-Mild series silent fan – This is a well-known fan in a new design. Low noise level is combined with high performance, which makes this fan convenient for ventilating rooms in an apartment. This was achieved due to the aerodynamic shape of the impeller. The fan housing and impeller are made of plastic that is resistant to sunlight.
Special air flow straighteners are installed in the fan outlet, which reduce turbulence, increase air pressure and help reduce noise levels.
The fan is equipped with a check valve to prevent air from the exhaust duct enters the premises when ventilation is not working.
The high level of protection against water IP 45 allows it to be used for bathroom ventilation. All electronic components are closed with special sealed covers.
Properties
- low noise level
- built-in check valve
- electric motor on bearings, which increases service life up to 40,000 hours.
- consumption of only 17 W per hour
- can work continuously or be switched on when necessary
- protection class IP 45
- 5 year warranty
How to turn on
The fan can be turned on:
- using a standard key switch
- together with the lighting
- using the Vents RS-1-300 speed controller or the Vents SRS-1 touch controller. The regulator can also change the performance depending on what is currently needed. Also, with the help of such a regulator, you can achieve an absolutely silent mode, since with a decrease in productivity, the aerodynamic noise level from air movement through the exhaust shaft decreases.
Regulators and switchesare purchased separately.
Installation
The fan is installed in the exhaust shaft directly or using a small air duct. When installed through an air duct, the noise level increases slightly and the ventilation performance decreases.
When installing directly into a shaft, you must make sure that there is enough space from the fan pipe to the shaft wall for its normal operation. This affects noise levels and performance.
All connections between the fan and the duct must be sealed using a clamp and sealant.
Warranty
The product warranty is 5 years (60 months) subject to compliance with the rules of transportation, storage, installation and operation.
Installation and operating instructions
(Passport in pdf format, when you click on it it will open in a new tab)
