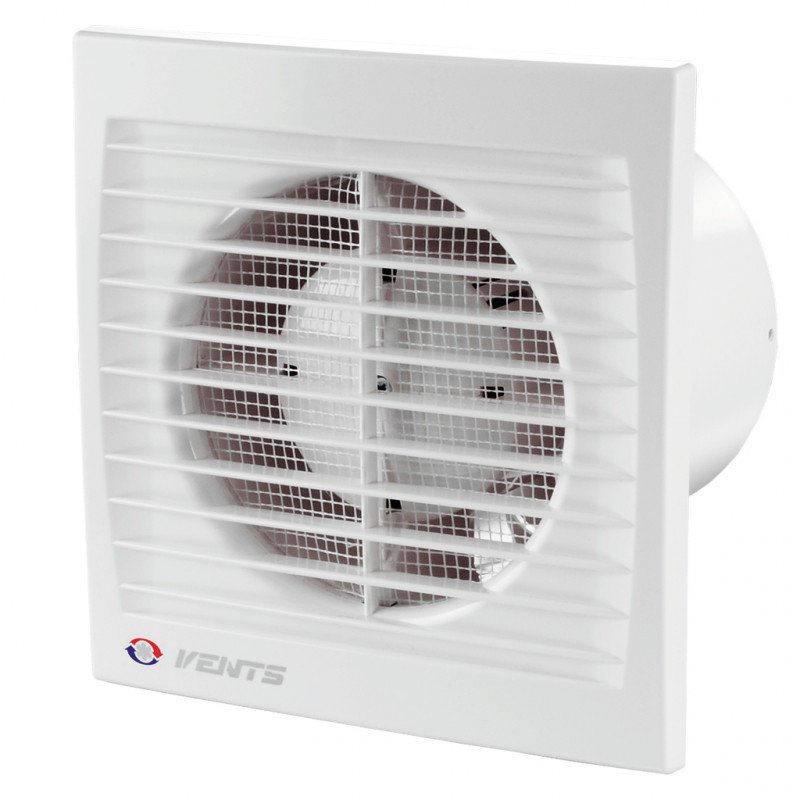

Order Fan Vents 100 SVT in Valencia at a great price
from
76.55 €
Ex Tax: 63.27 €
- Availability: 99
- Brand: Vents
- Model: 9517
- Weight: 1.00kg
- UPC: 9517
- JAN: 345
This fanis equipped with a pull cord switch and a timer.
After disconnecting from the mains, the fan continues to operate for the time set by the timer from 2 to 30 minutes.
< h3>Specifications| Parameter | Value< /td> |
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 14 |
| Productivity, m3/h < /td> | 95 |
| Current, A | 0.085 |
| < strong>Rotation speed, min-1 | 2300 |
| Noise level at a distance of 3 m, dB(A) | 34 |
| Weight, kg | 0.59 |
| Protection, class | IP34 |
| Pipe size, mm | 100 |
Overall dimensions
< p>
| Dimensions | ?D | B | H | L | L1 |
| < strong>mm | 100 | 150 | 120 | 108 | 12 |
Connection diagram
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and others domestic premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance of the ventilation system.
- For installation with 100 mm air ducts.
Design
- Modern design and aesthetic appearance.
- Vents 100 SVT fan housing and impeller made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- Ultra-thin front panel.
- Protective mesh from insects.
- Protection degree IP 34.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
Control
Manual:< /p>
- The fan is controlled using the room light switch. The switch is not included in the delivery.
- The fan is controlled via a built-in cord switch “B”. When mounting the fan on the ceiling, this option is not used.
Installation features
- The fan is installed directly into the opening of the ventilation shaft.
- When the ventilation unit is located remotely mines, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Example installation
