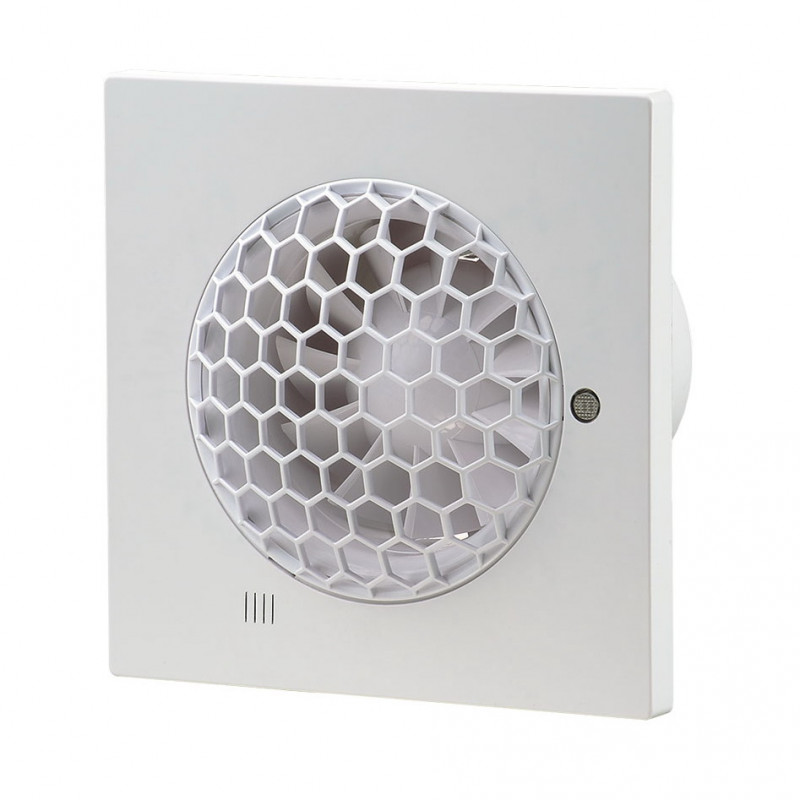

Description of the Quiet-S series
Currently, the most popular household fans are Vents Quiet fans. Therefore, the manufacturer is expanding the line of fans in this series with a new design. The main change is a new front grille in three options - white, blue and green. All these grilles are included in the package.
In all other respects, the fan remained with the same consumer properties as previous series.
The main consumer advantage of the Vents Quiet 100 fan is its low noise level. All fans with a connection diameter of 100 mm can be safely called silent. The manufacturer managed to achieve this by successfully combining several characteristics of the fan - the shape of the impeller and housing, the speed of rotation of the impeller, and the use of a silent electric motor.
To ensure that air from the ventilation shaft does not enter the room where the fan will be installed, built-in check valve. To protect against splashes in the bathroom, the fan is protected with a high level of protection class IP 45. All electronic components are insulated and hermetically sealed.
You can see the fan with your own eyes in a video review kindly provided by the manufacturer Vents. In it you can also learn about recommendations for installing and connecting the fan.
Technical characteristics
| Option | Size |
| Voltage, V | 230 |
| Current frequency, Hz | 50 |
| Power consumption, W | 7.5 |
| Maximum flow air, m3/h | 99 |
| Current, A< /strong> | 0.049 |
| Noise level at a distance 3 m, dB(A) | 24 |
| Weight, kg< /strong> | 0.58 |
| Protection | IP 45 |
| Pipe size, mm | 100 |
Dimensions
| Dimensions | ?D | B | L | L1 |
| mm | 99 | 175 | 123 | 42 |
Performance chart fan
Motor life fan - 40,000 hours
To achieve this service life of the fan motor, ball bearings are used, their use allows reducing energy consumption to 7.5 W. The rolling bearings used in Quiet have low friction resistance, and therefore have a higher efficiency; at start-up, the friction torque is 20 times less compared to household fans with a sleeve.
High protection class - IP45
The fan is protected from large-diameter solid particles and water flows. This makes it ideal for installation in the bathroom, however, it is not recommended to specifically pour water on it.
Compact dimensions
The compact design of the fan is suitable for both wall and ceiling installation. The shortened branch pipe(81 mm)allows you to install the fan in a ventilation shaft or connect air ducts? 100 mm.
Quiet
As mentioned above, thanks to the use of several design solutions at once, the fan of this model is virtually silent. The human ear cannot detect a noise level of 24 dBA. It is worth noting that in order for this property of the fan to remain the entire time it is used, it is necessary to carry out periodic maintenance. To do this, you need to remove the front panel every six months or a year and clean the fan impeller with a damp cloth. You can find out more detailed information in the fan passport.
Warranty - 5 years.
Warranty for the Vents 100 Quiet fan - 5 years, subject to compliance with the rules of transportation, storage, installation and operation.
Recommendations
Vents Store definitely recommends this fan as the most reliable, convenient and silent. Its use for exhaust ventilation of bathrooms, showers and kitchens has already been tested by time and hundreds of thousands of customers in many countries where the Ukrainian plant Vents sells its products.
