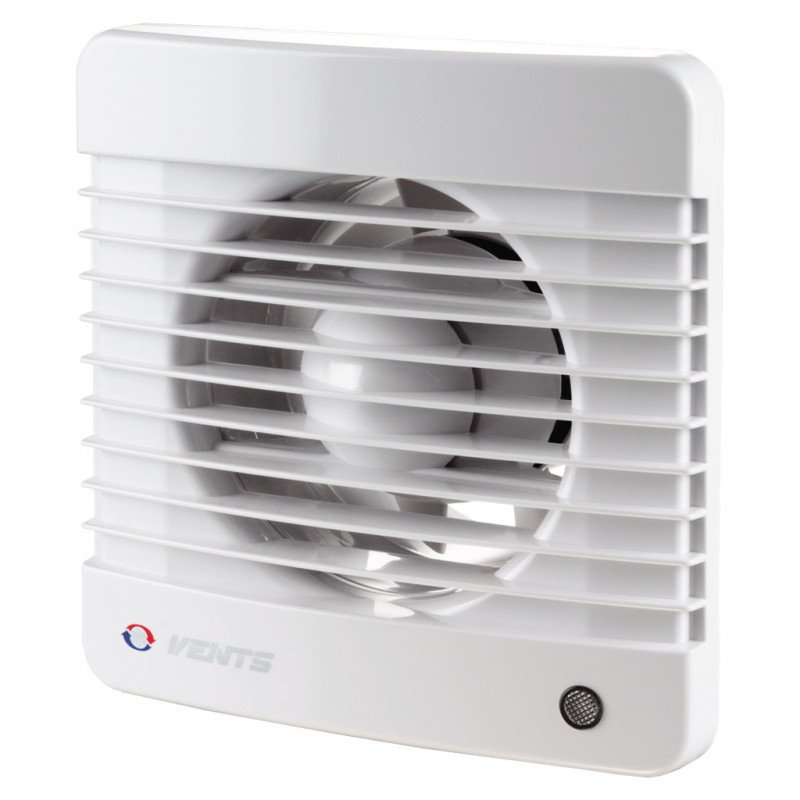

Order Fan Vents 100 MTR in Valencia at a great price
from
113.71 €
Ex Tax: 93.97 €
- Availability: 99
- Brand: Vents
- Model: 9641
- Weight: 1.00kg
- UPC: 9641
- JAN: 301
This fan is equippedwith a timer and a motion sensorwith a detection angle of 100°. If the sensor detects movement in its coverage area, the fan will automatically turn on and continue operating according to a timer from 2 to 30 minutes. Detection range up to 4 meters (detection angle max. 100°).
Technical characteristics of the fan
| Option | Size | Unit of measurement | |||
| Voltage | 220-240 | B | |||
| Current frequency | 50 | Hz | |||
| Maximum power | 14 | W | |||
| Performance | 98 | m3/h | |||
| Tok | 0.085 | A | |||
| Rotation speed | 2300 | min-1 | |||
| Noise level at a distance of 3 m | 34 | dB(A) | |||
| Weight | 0.55 | kg | |||
| Protection | IP 34 | class | |||
| 100 | mm |
| Dimensions< /td> | ?D | < td style='background-color: #b9c4ca, text-align: center, border: 1px solid #000000,'>BH | L | L1 | |
| mm | 100 | 159 | 135 | 88.5 | 23 |
Scheme for connecting the fan to the network
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other household premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium air flow over short distances with low resistance of the ventilation system.
- For installation with air ducts 100, 125 and 150 mm.
Design
- Modern design and aesthetic appearance.
- The housing and impeller are made made of high-quality and durable ABS plastic, UV-resistant.
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- Protective insect net.
- Degree of protection IP 34.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operation and requires no maintenance.
- Equipped with overheating protection.
Installation features
- The fan is installed directly in the opening of the ventilation shaft or used for ceiling mounting with connection to an air duct.< /li>
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
Installation example
M series fan passport
Video tutorial on fan installation
