Order Check valve Vents KOM1 400x200 in Valencia at a great price

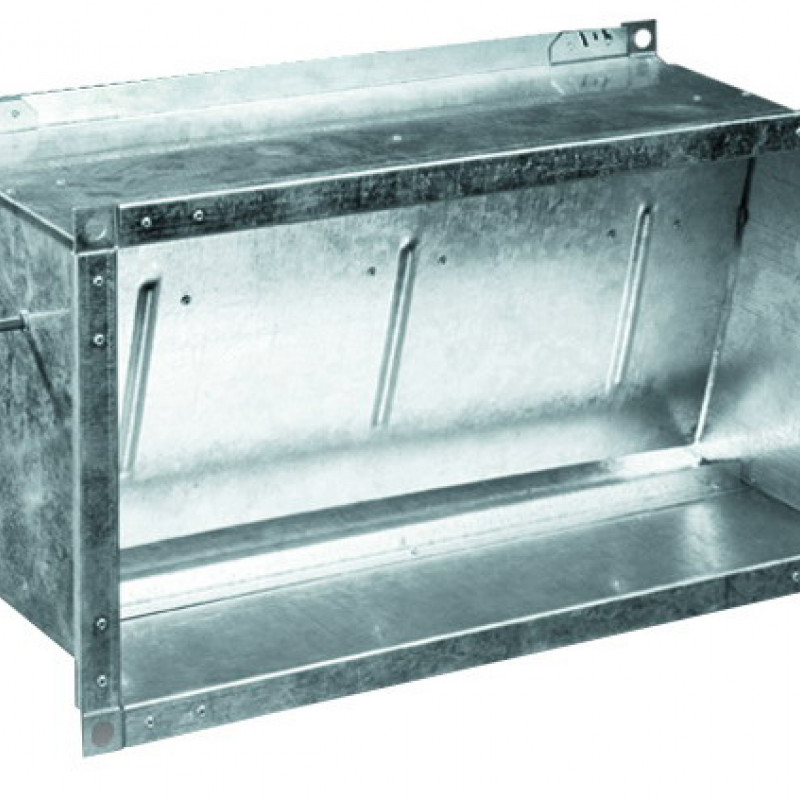

The ventilation check valve Vents KOM1 400x200 is used to close a duct with a cross-section of 400x200 mm in a duct ventilation system when the fan is not working. The closure of the channel occurs under the own weight of the valve flap. The valve opens due to the movement of air flow through the channel.The body and rotary plate are made of galvanized sheet steel. The valve handle is equipped with a counterweight, with which you can adjust the sensitivity of opening and closing the valve.
Installation
The check valve is designed for installation in rectangular ducts of ventilation systems with the long side in a horizontal position. The plate should close on its own under its own weight. When placing a valve in a ventilation system, the direction of air flow must be taken into account.
Dimensions
| Dimensions | B | B1 | B2 | B3 | H | H1 | H2 | L |
| mm | 400 | 420 | 440 | 461 | 200 | 220 | 240 | 202 |
