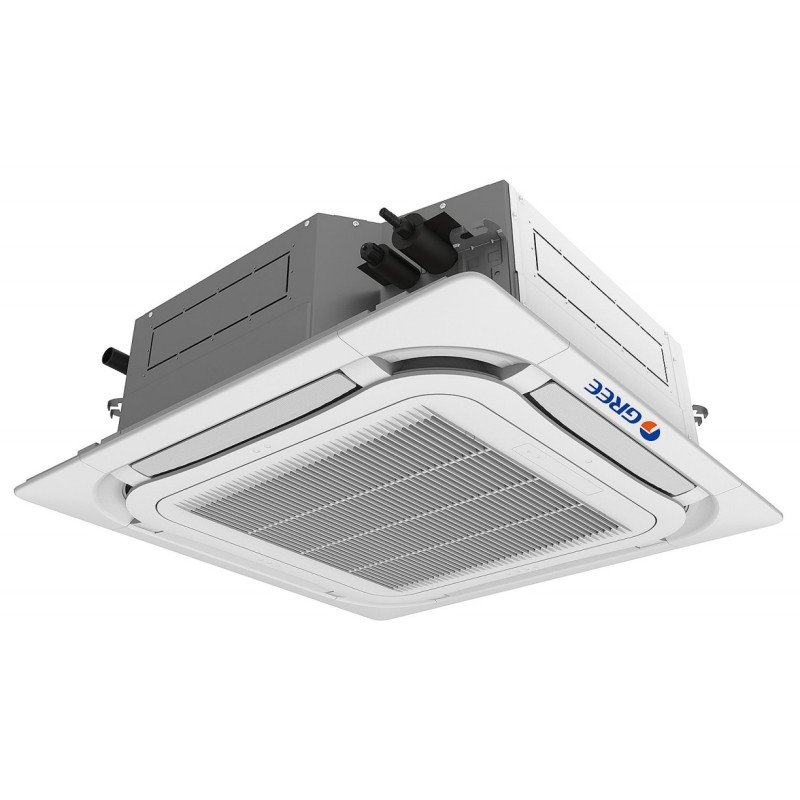

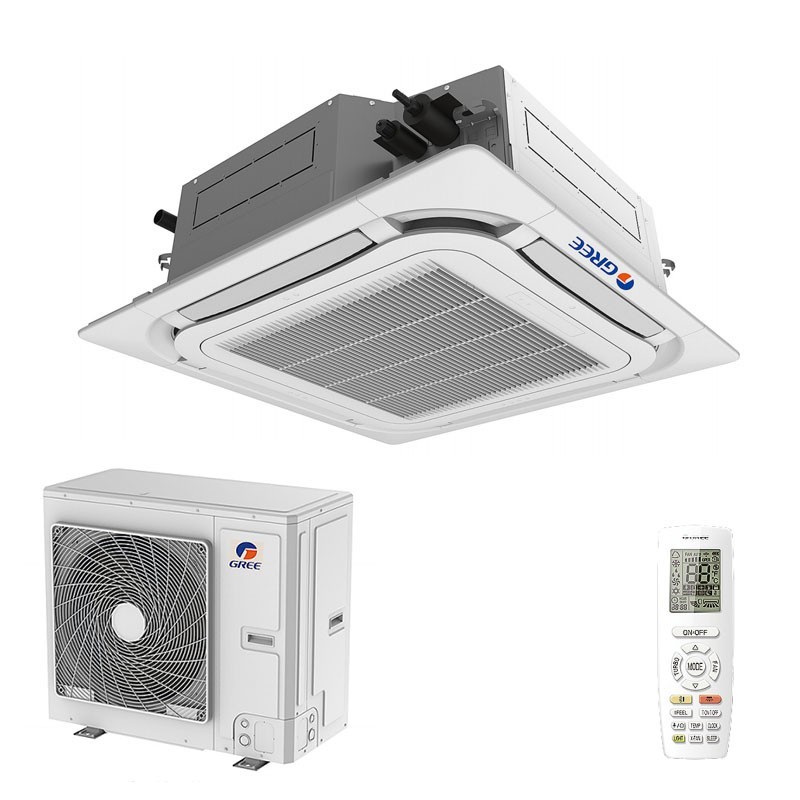

Cassette GREE UM CST 36 R32
Air conditioning brand Gree launches the UM CST R-32 range, which uses the new R-32 gas.
Founded in 1991, GREE ELECTRIC is one of the largest air conditioner manufacturers in the world. Together with GREE Products, the official distributor in Spain and France, the company integrates the entire product life cycle: R&D (research and development), PRODUCTION, MARKETING and SERVICE.
Continuous innovation in terms of improving our products. and the well-being of customers has allowed the Gree brand to become one of the best today.
Product improvement never leaves the brand indifferent, as they meet modern requirements. technological developments...
- 360° air flowGREE cassettes are equipped with a 360° air diffusion system, which allows you to condition all corners of the room. and provides maximum comfort for the user.
- ADDITIONAL WIFI CONTROLWith these accessories we can connect our device to our home WIFI and control the machine through our Smartphone. The app also includes a weekly programmer built into the app to make it easier and better to control our air conditioner. Thanks to the programmer, you can set up your air conditioning without being at home. /premises.
- Energy efficiency class A++The Gree UM CST 36 R32 provides high energy efficiency (A++) /A+) in both cold and hot conditions.
Main features:
- 360° air outlet
- Energy efficiency class A++/A+
- Multi-speed fan.
- Adjustable blades.
- Drainage pump included.
- ADDITIONAL WIFI control.

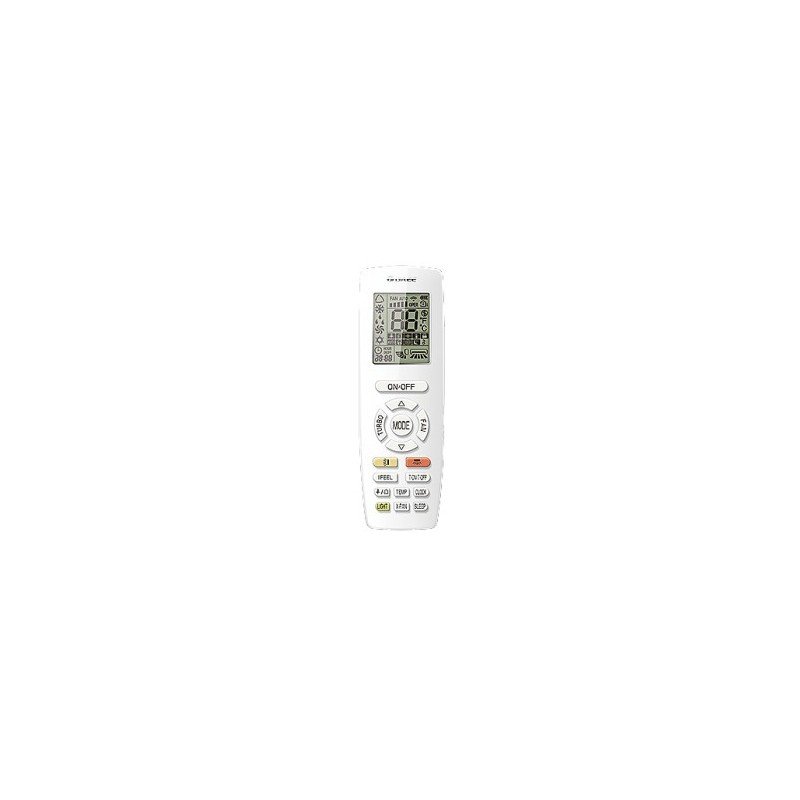

- Remote control.
| Air conditioning | |
| Sound level (outdoor unit) dB(A) | 55 |
| Refrigerant | R-32 |
| Refrigerant liquid line diameter, mm (inches) | 9.52 (3/8 inch) |
| Energy efficiency class in cooling mode | A++ |
| Refrigerant gas line diameter, mm (inches) | 15,875 (5/8 feet) |
| Energy efficiency class in heating mode | A+ |
| Refrigerant pipe length without additional charge, m | 5 |
| Range | U-Match |
| Dimensions (Height x Width x Depth) | 240x840x840 мм |

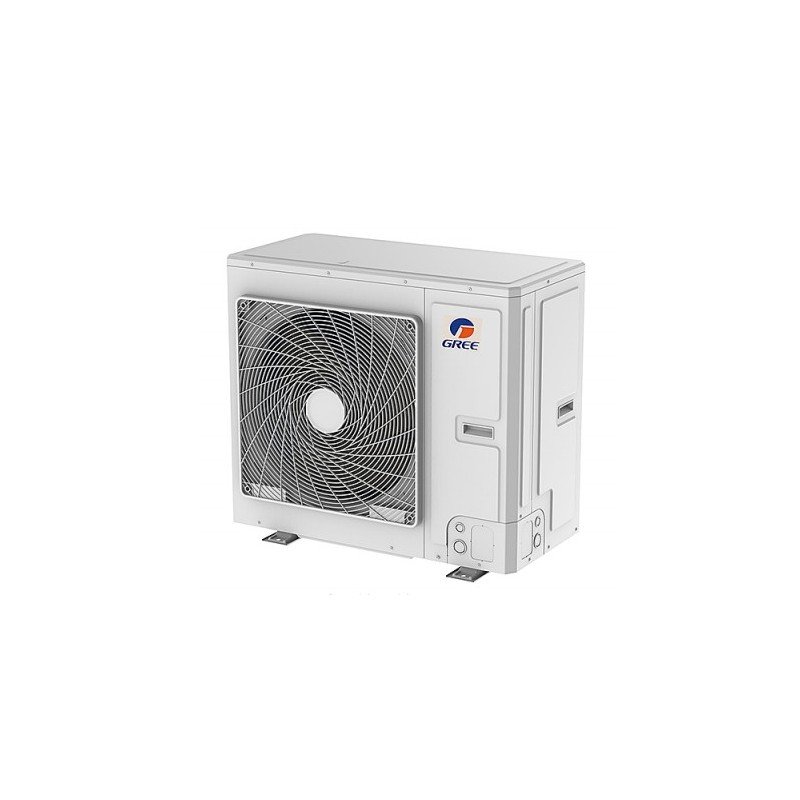

| Outdoor unit dimensions (height × width × depth) | 820x940x460 мм |
| SEER | 6.1 |
| SCOP | 4 |
| Factory refrigerant charge, kg | 2,5 |
| Electrical wiring | Однофазный |
| Power consumption in cooling mode, W | 3150 |
| Approximate weight | 31 кг. инт/83 кг шт. доб. |
| Cooling capacity, W | 8500 |
| Power consumption in heating mode, W | 3550 |
| Maximum pipe length | 65 |
| Recommended area, m² | From 75 to 85 m2 |
| Maximum level difference | 30 |
| Noise level | Умеренный |
| Sound level (indoor unit) dB(A) | 42-48 |
| Number of outdoor unit fans | 1 вентилятор |
