- Availability: 99
- Brand: Vents
- Model: 8524
- Weight: 4.80kg
- UPC: 8524
- JAN: 826

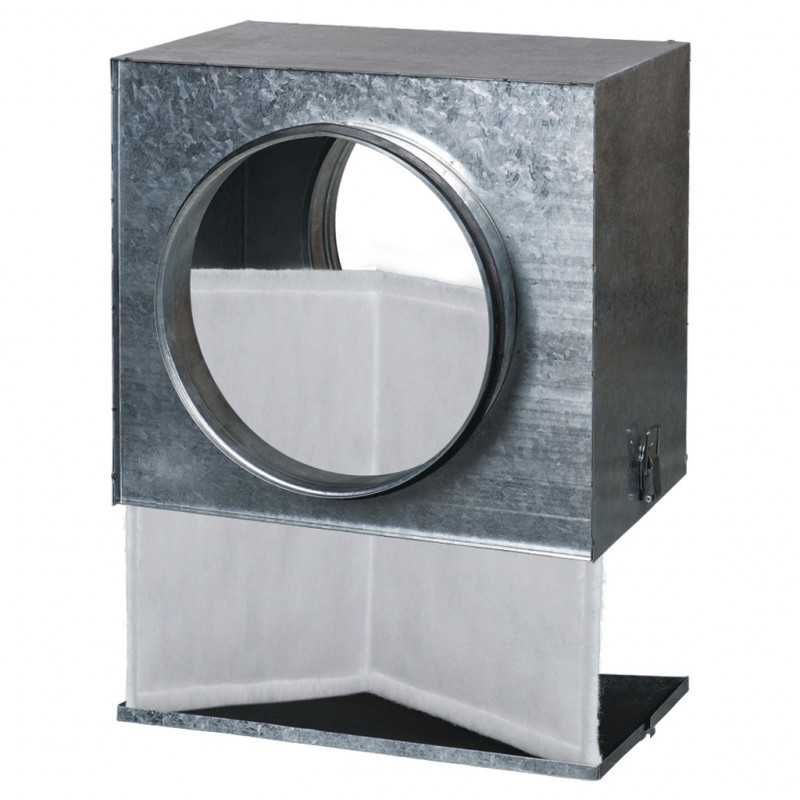

This Vents FBV 150 filter uses a V-shaped filter element with an increased filtration area. The cassette air filter for ventilation is designed to filter supply air; sometimes the filter can also be used in exhaust ventilation systems. This series of Vents filters is ideal for air filtration in ventilation systems with low capital costs.
The filter will be connected to other elements of the system with a diameter of 150 mm, if necessary, connecting the filter to elements of a different section is necessary use adapters (reducers).
The body is made of galvanized steel. The filter box is equipped with connecting flanges with a rubber seal for a tight connection with the air ducts. The hinged filter cover is equipped with lever locks for quick access to the replaceable filter element. The filter element is made of non-woven fabric made of synthetic fibers, fixed on a frame made of steel frame.
Filtration class G4.
- < /ul>
Installation
The design of the filter allows it to be mounted on round air ducts using clamps in any position. When assembling, it is necessary to take into account the direction of air movement (must correspond to the indicator on the filter). During installation, it is necessary to leave space for service access to the filter (cleaning or replacing the filter element).
Dimensions
| Dimensions | < td style='text-align: center, background-color: #b7c0c2,'>DB | H | L | L1 | |
| mm | 149 | 293 | 237 | 250 | 158 | < /tr>
Diagram
