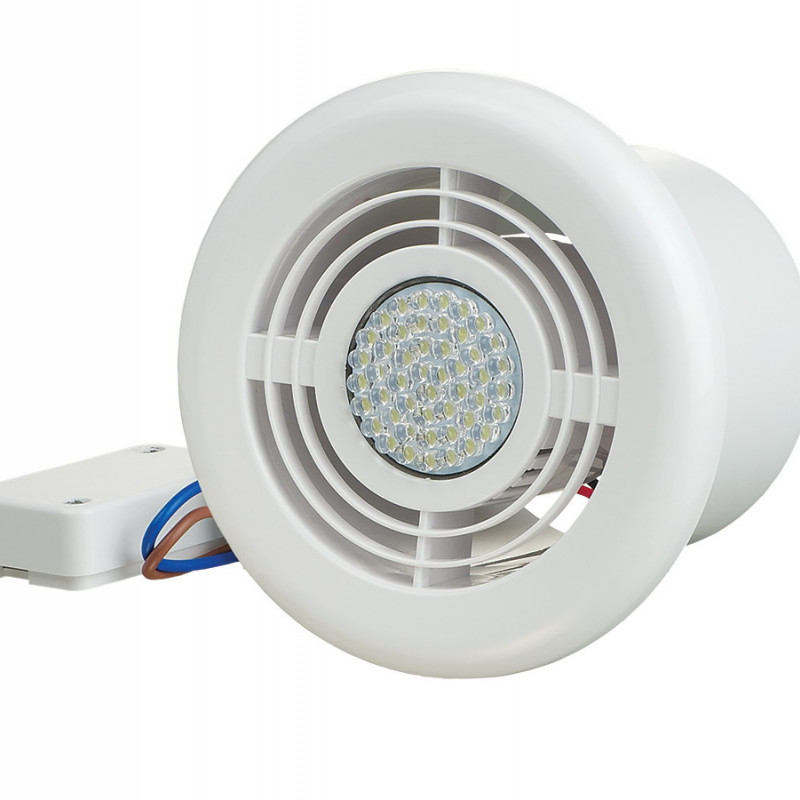

Ventilation diffuser with lighting Vents FL-100 LED 220 V is made of high-quality plastic, resistant to ultraviolet radiation. The diffuser can be used both in supply ventilation systems and in exhaust systems.
A special feature of these diffusers is the built-in LED lighting in the center of the air distributor. A diffuser, in addition to its function of supplying or removing air from a room, can be used as an additional design element and lighting element. You can buy diffusers as standard in white or chrome. Also available in gold color (on request).
How to mount such a diffuser in the ceiling
Most often, such diffusers are connected to flexible air ducts coming from the root air duct made of galvanized steel. For installation with a flexible air duct, use a diffuser pipe of the appropriate diameter. The diffuser is mounted in a false ceiling in a hole prepared in advance. To install the grille into the ceiling material, a mounting flange is provided.
This model uses a 3 W LED bulb. Bulb voltage - 220-240 V/50 Hz. This lamp does not require a transformer connection. Power is connected to it in the same way as to a regular light bulb from a switch. Separately, we would like to note that this type of lamp is not regulated by a dimmer (light brightness control).
- The color of the lamp is warm white.
- Power - 3 W.
- Socket - GU 10.
- Terminal box included in delivery .
Overall dimensions of the FL-100 LED 220 series diffuser
| Dimensions | D | D1 | L | L1 |
| mm | 141 | 99.4 | 87.5 | 15 |
