- Availability: 99
- Brand: Vents
- Model: 9415
- Weight: 50.00kg
- UPC: 9415
- JAN: 1612
A special feature of these diffusers is the built-in lighting in the center of the air distributor. A diffuser, in addition to its function of supplying or removing air from a room, can be used as an additional design element and lighting element. You can buy diffusers as standard in white or chrome. Also available in gold color (on request).

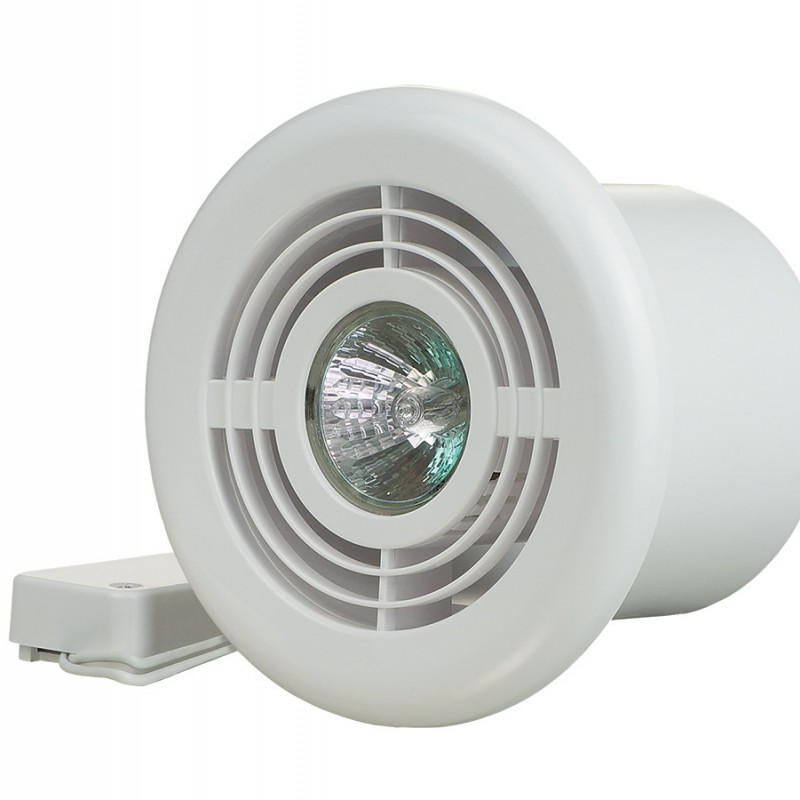

Ventilation diffuser with lighting Vents FL-100 12 V with built-in halogen lighting is made of high-quality plastic, resistant to ultraviolet radiation. The diffuser can be used both in supply ventilation systems and in exhaust systems.
How to mount such a diffuser in the ceiling
Most often, such diffusers are connected to flexible air ducts coming from the root air duct made of galvanized steel. For installation with a flexible air duct, use a diffuser pipe of the appropriate diameter. The diffuser is mounted in a false ceiling in a hole prepared in advance. To install the grille into the ceiling material, a mounting flange is provided.
This model uses a 20 W halogen bulb. The light bulb voltage is 12 V/50 Hz. If you are going to supply 220 V to this lamp, you need an additional transformer (purchased separately). If you want to install several of these backlit diffusers, then the transformer must be selected on the basis that the power of the transformer used must be no less than the sum of the powers of the lamps connected to it.
- The color of the lamp is warm white.
- Power - 20 W.
- Socket - G 5.3.
- The delivery includes a terminal box.
Overall dimensions of the FL-100 series diffuser
| Dimensions | D | D1 | L | L1 |
| mm | < td style='text-align: center,'>14199.4 | 87.5 | 15 |
