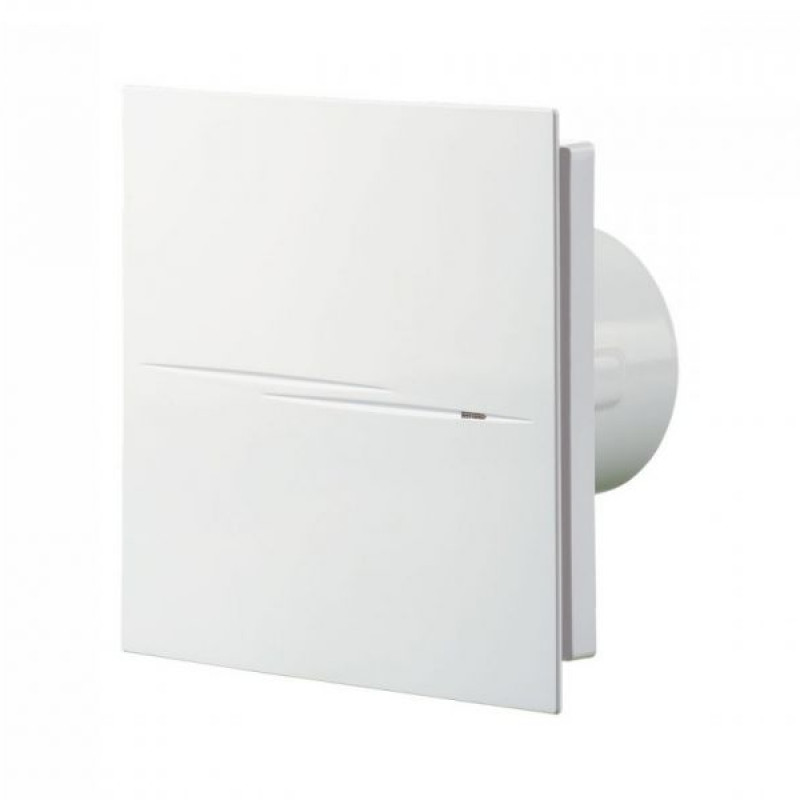

This Vents 100 Quiet Style TH fan is equipped with a check valve and atimer fan shutdownand humidity sensor. The fan turns on when the humidity level set on the sensors is exceeded. Then the fan runs for the time set on the timer and turns off. The shutdown time can be set from 2 to 30 minutes
Technical characteristics
| Parameter | Value |
| Voltage, V | 230 |
| Current frequency, Hz | 50 |
| Power consumption, W | 7.5 | < /tr>
| Maximum air flow, m3/h | 90 | Current, A | 0.05 |
| Noise level at a distance of 3 m, dB(A) | 26 |
| Weight, kg | 0.66 |
| Protection | IP 45 |
| Pipe size, mm | 100 |
Dimensions
| Dimensions | D | B | L | L1 < /strong> |
| mm | 99 | 200 | 130 | 49 |
Description of the fan
Fan VENTS Quiet series Style is a new exhaust fan for a bathroom or toilet in a stylish design.
The main feature of this fan is its silent operation, which became possible due to the combination of correctly selected the shape of the impeller and the selected rotation speed of the electric motor.
The plastic housing and fan impeller are made of high-quality material that is resistant to sunlight and time. To ensure that air from the exhaust duct in the house does not enter the room when the fan is turned off, a check valve is installed in the fan.
The fan uses a ball bearing motor, which increases the service life by an order of magnitude. fan service. Plus, this eliminates the need for service and increases the guaranteed service life to 40,000 hours.
The IP 45 protection class makes the fan an ideal solution for bathroom ventilation. Electronic components are sealed with plugs. We would like to remind you that this does not mean that water can be poured onto the fan; this protection class provides for normal operation when minor splashes come into contact with the device.
Electricity consumption for 100 Quiet Style is only7.5 W < /strong>in 1 hour.
< h3>Compact dimensions
The compact design of the fan is suitable for both wall and ceiling installation. The shortened branch pipe(81 mm)allows you to install the fan in a ventilation shaft or connect air ducts? 100 mm.
Low noise level - only 26 dBA
Rubber vibration-damping inserts are designed to absorb engine vibrations and sound insulation. Special air flow straighteners are installed in the fan outlet, which reduce turbulence, increase air pressure and help reduce noise levels.
How a fan with a timer and humidity sensor works
Connection diagram
Fan from external switch
The fan turns on with the light
The fan can also operate in a mode where it turns on only when the humidity level is exceeded. In this case, it is necessary to connect only the constant phase to terminal L. The fan will turn on when the set humidity value is exceeded, after reaching the required humidity level, it will continue to run for a while according to the timer and turn off.
Video of installation and connection of the Quiet Style series fan< /h3>
Warranty
Warranty for the fan is 5 years subject to compliance with the rules of transportation, storage, installation and operation.
Documentation
Instructions for the fan in pdf format (will open in a new tab)
