Order Fan Vents 150 MAO1V in Valencia at a great price
from
138.21 €
Ex Tax: 114.23 €
- Availability: 99
- Brand: Vents
- Model: 9649
- Weight: 1.50kg
- UPC: 9649
- JAN: 407

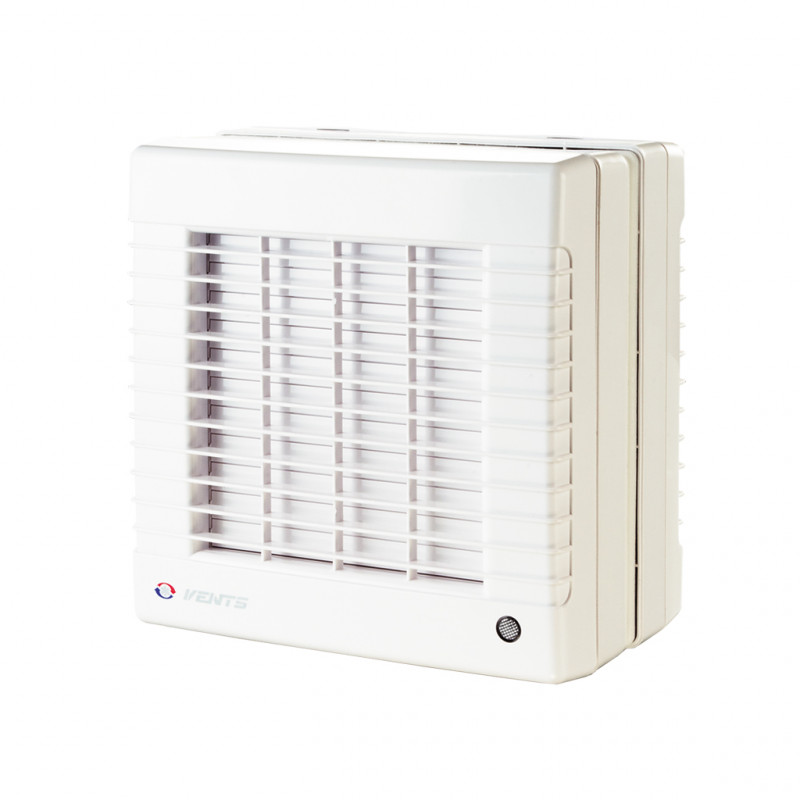

The Vents 150 MAO1V fan is used for exhaust ventilation in domestic premises. This fan is mounted directly into a window or hole in the wall. This fan is equipped with a pull cord switch.
Specifications
| Parameter | Value |
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W< br> | 26 |
| Productivity, m3/h | 295 |
| Current, A | 0.13 |
| Rotation speed, min-1 | 2400 |
| Noise level at a distance of 3 m, dB(A) | 41 |
| Weight, kg < /br> | 1.53 |
| Protection, class | IP24 |
| 150 |
Dimensions
| Dimensions | ?D | B | H | L1 | L2 |
| mm | 150 | 210 | 195 | 66 | 60 |
Connection diagram
Scheme for connecting a fan with a built-in switch to the network
Application
- The Vents 150 MAO1V fan is used for ventilation of kitchens and other domestic premises.
- mounted in windows
Design
- The housing and impeller are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The design of the impeller increases the efficiency of the fan and the service life of the motor .
- The special design of the fan and motor ensures its silent operation.
- The fan is equipped with a thermal actuator, which ensures smooth opening and closing of automatic blinds. Automatic shutters prevent back draft.
- Protection class IP 24.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operationand does not require maintenance.
- Equipped with overheating protection.
Installation example
The direction of air movement must coincide with the direction of the arrow on the fan housing.
Supply set
- Fan - 1 pc.
- Screws - 4 pcs.
- User manual - 1 pc.
- Packing box < li>Bolts - 4 pcs.
- Nuts - 4 pcs.
- Plastic nuts - 4 pcs.
- Sealant - 2 pcs.
Warranty
The manufacturer guarantees normal operation of the fan for 60 months (5 years) from the date of sale, subject to compliance with the rules of installation and operation, storage and transportation. p>
Fan passport
