Order Fan Vents 150 MAO1T in Valencia at a great price
from
154.49 €
Ex Tax: 127.68 €
- Availability: 99
- Brand: Vents
- Model: 9635
- Weight: 1.50kg
- UPC: 9635
- JAN: 408

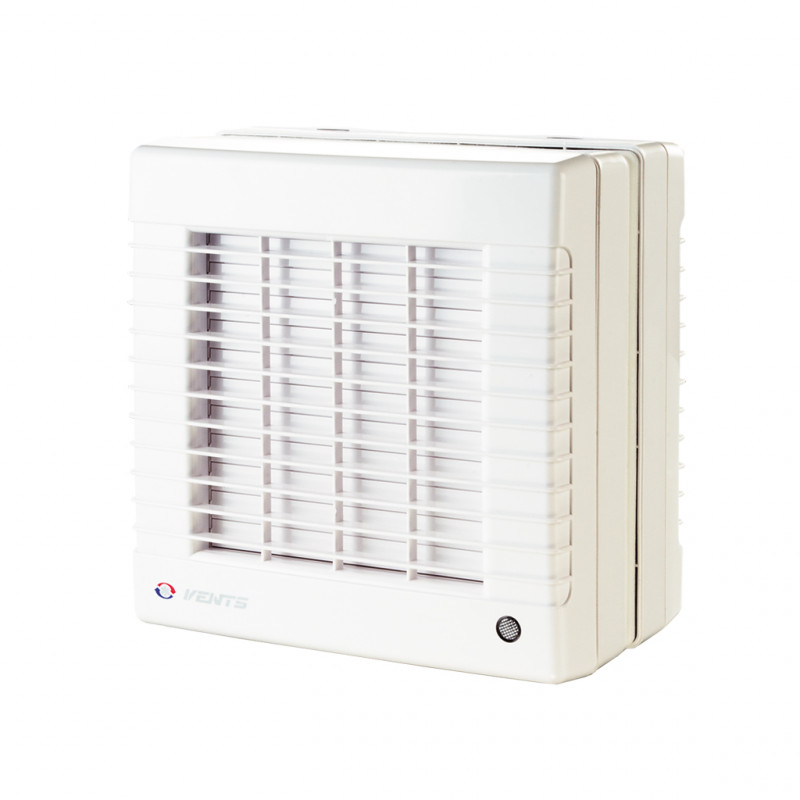

The Vents 150 MAO1T fan is designed for general exhaust ventilation of domestic premises. Installed in a window or in a wall opening. This fan modelis equipped with a shutdown timer.
After disconnecting from the mains, the fan continues to operate for the time set by the timer from 2 to 30 minutes.
Technical characteristics
| < strong>Parameter | Value | < /tr>
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 26 |
| Productivity, m3/h | < td style='text-align: center,'>295 |
| Current, A < /br> | 0.13 |
| Rotation speed, min-1 | 2400 | Noise level at a distance of 3 m, dB(A) | 41 |
| Weight, kg | 1.53 |
| Protection, class | IP24 |
| Pipe size, mm | 150 |
Overall dimensions
| Dimensions | ?D | B< /strong> | H | L1 | L2 |
| mm | 150 | 210 | 195 | 66 | 60 |
Connection diagram
< /br>
Application
- the Vents 150 MAO1T fan is used for ventilation of kitchens and other household premises.
- mounted in windows
Design
- The housing and impeller are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.< /li>
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- The special design of the fan and motor ensures silent operation.
- The fan is equipped with a thermal actuator, which ensures smooth opening and closing automatic blinds. Automatic shutters prevent back draft.
- Protection class IP 24.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operationand does not require maintenance.
- Equipped with overheating protection.
Installation example
The direction of air movement must coincide with the direction of the arrow on the fan housing.
Supply set - Fan - 1 pc.
- Screws - 4 pcs.
- User manual - 1 pc.
- Packing box
- Bolts - 4 pcs.
- Nuts - 4 pcs.
- Plastic nuts - 4 pcs.
- Seal - 2 pcs.
Warranty
The manufacturer guarantees normal operation of the fan for 60 months (5 years) from the date of sale, subject to compliance with the rules of installation and operation, storage and transportation.
Fan passport
