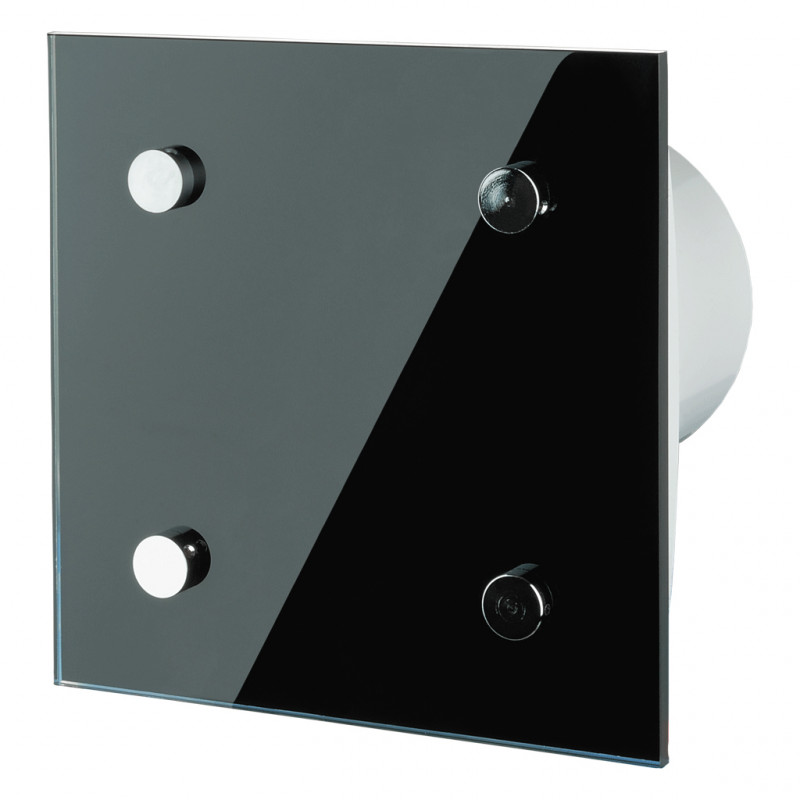

Vents 100 Modern T is designed for exhaust ventilation of domestic premises such as a toilet, bathroom or kitchen. This fan model is equipped with a shutdown timer.
After disconnecting from the mains, the fan continues to operate for the time set by the timer from 2 to 30 minutes.
Technical characteristics
| < strong>Parameter | Value | < /tr>
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 14 |
| Productivity, m3/h | < td style='text-align: center,'>88|
| Current, A < /br> | 0.085 |
| Rotation speed , min-1 | 2300 |
| Noise level at a distance of 3 m, dB(A) | 33 |
| Weight, kg | 0.6 |
| Protection, class | IP34 |
| Pipe size, mm | 100 |
Overall dimensions
| Dimensions | ?D | B | L | L1 |
| mm | 100 | 170 | 130 | 35 |
The principle of operation of a fan with a timer
It is turned on from an external switch (for example, from a light switch). After turning off the switch, the fan will continue to operate for the time set on the shutdown timer and turn off.
Connection diagram
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.
- For installation in ventilation shafts or connection to air ducts.
- Moving small and medium-sized air flow over short distances with low resistance of the ventilation system. < li>For installation with 100 mm air ducts.
Design
- Modern design and aesthetic appearance.
- Vents fan housing and impeller 100 Modern T are made of high-quality and durable ABS plastic, resistant to ultraviolet radiation.
- The front panel is made of plexiglass.
- The design of the impeller increases the efficiency of the fan and the service life of the motor.
- Protection degree IP 34.
Motor
- Reliable motor with low energy consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
Installation features
- The fan is installed directly into the opening of the ventilation shaft. < li>When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan output flange using a clamp.
- The fan is attached to the wall with screws.
- Can be used for ceiling mounting.
Installation example
Warranty
The manufacturer establishes a warranty period of operation (service life) of the product for < strong>60 months from the date of sale of the productthrough the retail network, provided that the consumer complies with the rules for transportation, storage, installation and operation of the product. In the event of malfunctions in the operation of the product due to the fault of the manufacturer during the warranty period (service life), the consumer has the right to free elimination of product defects through warranty service.
Fan Passport
