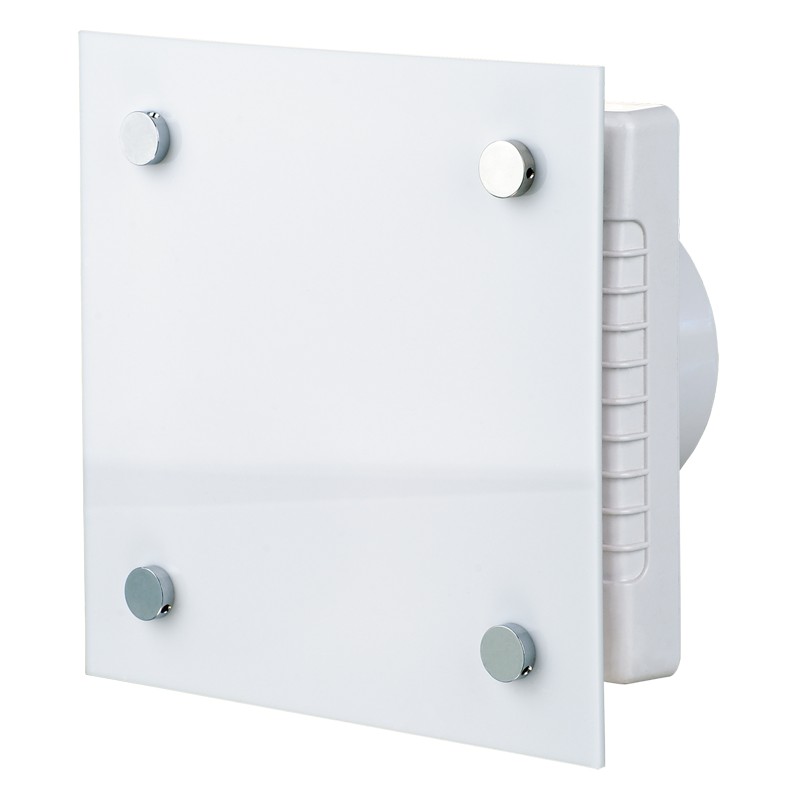

The Vents 150 Modern Auto fan is used for exhaust ventilation with a capacity of up to 295 m3/h. A special feature of this series is the presence of automatic blinds that block the channel when turned off. This prevents air from entering the exhaust duct into the premises.
This series also uses a flat front grille made of acrylic resin (plexiglass), which looks more aesthetically pleasing and fits well into the design of a bathroom or toilet.
Technical characteristics
| Parameter | Value |
| Voltage, V | 220 |
| Current frequency, Hz | 50 |
| Maximum power, W | 26 |
| Productivity, m3/h | 295 |
| Current, A | 0.13 |
| Rotation speed, min-1 | 2400 |
| < strong>Noise level at a distance of 3 m, dB(A) | 39 |
| Weight, kg | 1.31 |
| Protection, class | IP24 |
| Pipe size, mm | 150 |
Overall dimensions
| Dimensions | ?D | B< /td> | H | L | L1 |
| mm | 150 | 242< /td> | 242 | 139 | 81 |
Connection diagram
Scheme connecting a fan without a built-in switch to the network
Application
- Continuous or periodic exhaust ventilation of bathrooms, showers, kitchens and other domestic premises.
- For installation in ventilation shafts or connection with air ducts.
- Moving small and medium air flow over short distances with low resistance of the ventilation system.
- For installation with 150 mm air ducts.
Design
- The fan is equipped with a thermal actuator, which ensures smooth opening and closing of automatic blinds that prevent reverse draft.
- Modern design and aesthetic appearance.
- The body and impeller are made of engineering plastic, resistant to ultraviolet radiation.
- The front panel is made of white plexiglass.
- The design of the impeller allows increase the efficiency of the fan and the service life of the motor.
- Protection degree IP 24.
Motor
- Reliable motor with low power consumption.
- Designed for continuous operation and does not require maintenance.
- Equipped with overheating protection.
Control
Manual:
- The fan is controlled using the room light switch. The switch is not included in the delivery.
- Speed adjustment can be carried out using a thyristor regulator RS-1-300 (purchased separately). Fans can be connected several at a time to one control device.
Installation features
- The fan is installed directly into the opening of the ventilation shaft.
- When the ventilation shaft is located remotely, it is possible to use flexible air ducts. The air duct is connected to the fan outlet flange using a clamp.
- Attached to the wall with screws.
- Can be used for ceiling mounting.
Example installation
Warranty
The manufacturer establishes a warranty period of operation (service life) of the product for 60 months from the day of sale of the productthrough the retail network, provided that the consumer complies with the rules for transportation, storage, installation and operation of the product. In the event of malfunctions in the operation of the product due to the fault of the manufacturer during the warranty period (service life), the consumer has the right to free elimination of product defects through warranty service.
