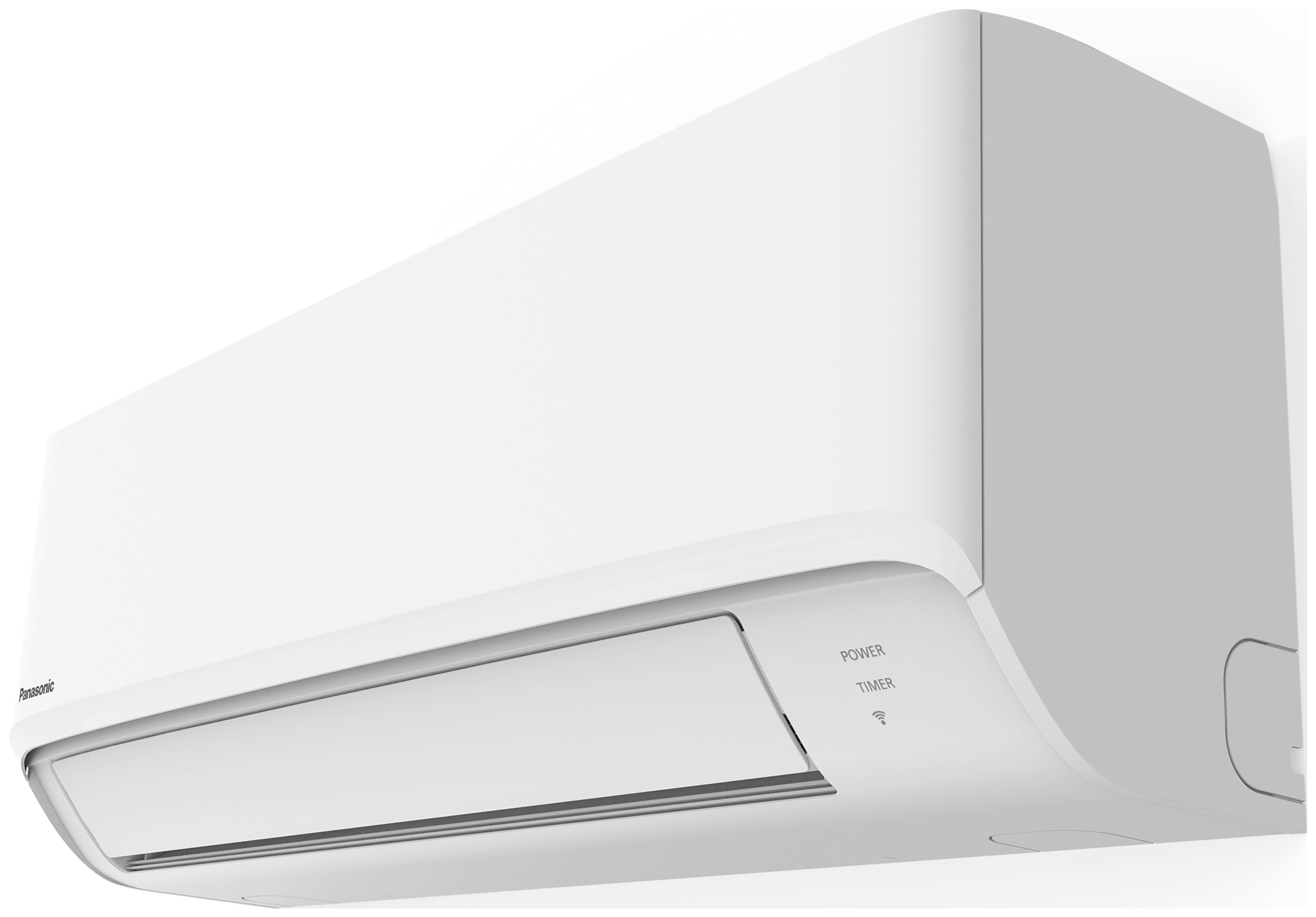

Ultra-compact split-system 1x1 BZ Panasonic KIT-BZ60-ZKE , indoor unit 290 x 779 x 209 mm, outdoor unit - 695 x 875 x 320 mm.
Domis.pro presents ultra-compact split-system Panasonic KIT-BZ60-ZKE from the new line BZ. These units stand out for their reduced size, providing excellent performance in limited spaces. The indoor unit measures just 290 x 779 x 209mm and the outdoor unit measures 695 x 875 x 320mm. The system uses environmentally friendly R32 gas, which not only takes care of the environment but also helps to reduce electricity consumption due to its high energy efficiency.
Key benefits:
- Ultra-compact design - the indoor unit is only 779mm wide, making it easy to install in tight spaces.
- Energy efficiency - rated A++ in cold (SEER 6.4) and A+ in hot (SCOP 0.14), saving on energy consumption.
- Low noise - operates very quietly, down to 20 dB(A).
- Climate comfort - maintains operation even at outdoor temperatures as low as -10°C.
- Aerowings - technology to change the direction of airflow to create a comfortable atmosphere.
- PM2.5 filter - for cleaner indoor air.
- Easy installation and maintenance - new enhancements significantly reduce installation time and simplify maintenance, including an easily removable front grille.
- Optional internet and voice control (optional accessory required).
Specifications:
- Indoor unit dimensions: 290 x 779 x 209mm
- Outdoor unit dimensions: 695 x 875 x 320 mm
- Energy consumption: A++ (cold) / A+ (heat)
- Noise level: up to 20 dB(A)
- Cooling at outdoor temperature down to -10°C
- Refrigerant type: R32
Accessories:
- Wi-Fi adapter CZ-TACG1
- RAC interface adapter for integration into P-Link CZ-CAPRA1
- Wall control for split and floor console CZ-RD517C
Panasonic KIT-BZ60-ZKE is the ideal solution for creating a comfortable indoor climate in rooms with limited space, offering high energy efficiency and convenient operation.
Production Factory Wall-mounted split system with Producer Prices
Design, Manufacture, Supply, Installation, Maintenance, Guarantee, Service
Conditioner | |
Sound level (outdoor unit) dB(A) | 48/49 |
Split Color | White |
the diameter of the refrigerator line. Liquid, mm (inches) | 6.35 (1/4 inch) |
Energy efficiency marking (Cold mode) | A++ |
Outdoor unit Article | CU-BZ60ZKE |
the diameter of the refrigerator line. Gas, mm (inches) | 12.7 (1/2 inch) |
Marking of energy consumption (heat) | A+ |
Dimensions (Height x Width x Depth) | 290 x 779 x 209 мм |
Dimensions of the outdoor unit (Height x Width x Depth) | 695 x 875 x 320 мм |
SEER | 6.4 |
SCOP | 4.1 |
Length in factory condition (m) | 7,5 |
Internal unit Number | CS-B60ZKE |
Power supply | Внутренний блок |
EFFICIENCY | 3,16 |
Factory filling of refrigerant (kg) | 1,11 |
Electrical wiring | Однофазный |
Cold flow rate (W) | 1980 |
Approximate weight | внутренний блок 9 кг / внешний блок 43 кг |
Frigorías | 6000 |
Heat consumption (W) | 2150 |
Maximum pipe length | 15 |
Recommended area (m2) | From 35 to 45 m2 |
Maximum level difference | 15 |
Noise level | Низкий |
Sound level (indoor unit) dB(A) | 34/37/45 |
Number of fans Outdoor unit | 1 вентилятор |
