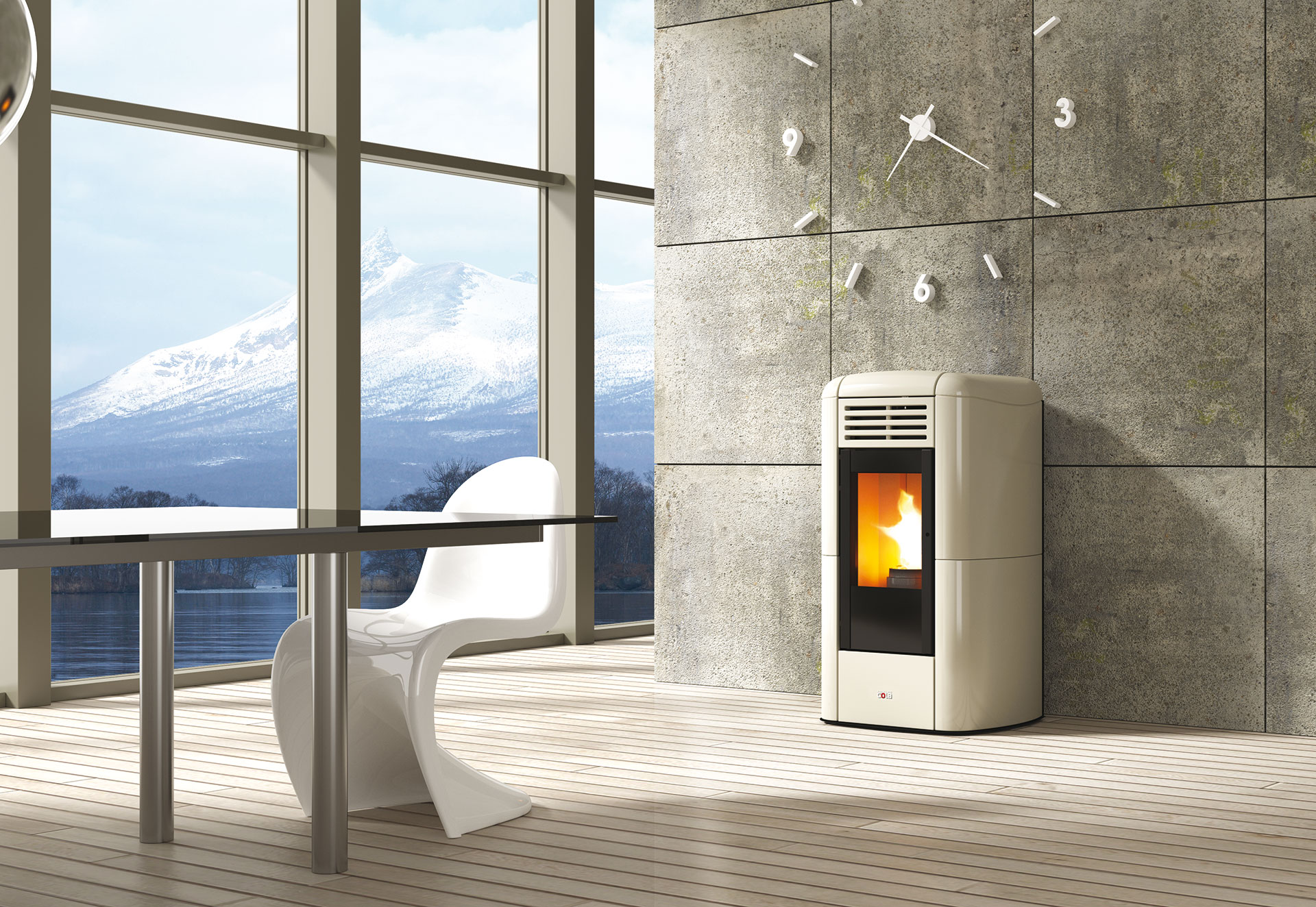

Pellet thermo stove with water circuit, 17.4 kW
Pellet thermo stove is a powerful heating device equipped with a tile cover, circulation pump, expansion tank and safety valve (3 bar). Made of steel, cast iron and majolica, which ensures reliability and durability. Suitable for residential heating and supplying heat to the water heating system.
Advantages:
- High power - rated heat output of 17.4 kW, of which 15.05 kW is transferred to the heating system.
- Economical - high efficiency up to 97.41%, adjustable fuel consumption from 1.15 to 3.92 kg/h.
- Safety - low CO and dust emissions,safety valve, safe installation distances.
- Ease of operation - manual heat exchanger cleaning system, built-in pump, remote control, color selection.
Specifications:
- Total heat output: 18,52 - 5,6 kW
- Connection to the heating system: yes
- Chimney diameter: 80 mm
- Air intake diameter: 50 mm
- Exhaust gas temperature: 134.6°C - 55.6°C
- Power supply: 230 V - 50 Hz
- Power consumption: 420 W (start), 140 W (operating mode)
- Fuel tank capacity: 24 kg
- Heat exchanger capacity: 18,5 liters
- Weight: 177 kg
Order in the online store Domis.pro - reliable heating equipment with delivery!
Characteristics
Minimum safety distance (rear-right side/left side-floor)| Construction: Acciaio, ghisa e maiolica | ||
| Combustion chamber: Acciaio, ghisa vermiculite | ||
| Total heat output | KW | 18,52-5,6 |
| Rated heat output [Pnom] - reduced heat output [PRED] | KW | 17,4 - 5,46 |
| Power supplied to rooms at Pnom -Pred | KW | 2,35 - 1,13 |
| Power supplied to water at Pnom-Pred | KW | 15.05 - 4,33 |
| Fuel/consumption per hour at Pnom-Pred | Kg/h | 3,92 - 1,15 |
| CO 13% O2 emissions at Pnom-Pred | % | 0,01 - 0,047 |
| Dust emissions (15a-B-VG) at Pnom | mg/m3 | 11,3-36,4 |
| Flue gas outlet temperature at Pnom-Pred | °C | 134,6 - 55,6 |
| Yield at Pnom-Pred | % | 93,96-97,41 |
| Shot | Pa | 10 - 14 |
| Smoke outlet dimensions | mm | 80 |
| Air intake diameter | mm | 50 |
| Power supply | 230 V - 50 Hz - 2A | |
| Power consumption | W | 420 start - 140 |
| mm | 200 - 300 - 0 | |
| Fuel tank capacity | Kg | 24 |
| Chamber capacity | lt | 18,5 |
| Weight | Kg | 177 |
